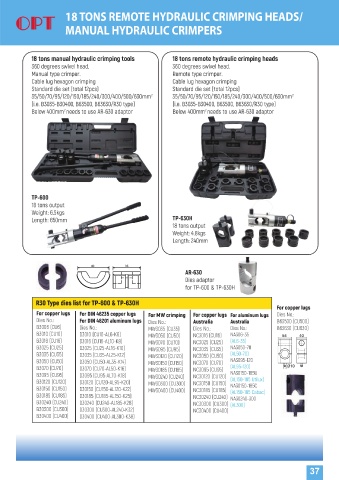

18 TONS REMOTE HYDRAULIC CRIMPING HEADS/
MANUAL HYDRAULIC CRIMPERS
aulic c
18 tons r
ydr
emo
te h
18 tons manual hydraulic crimping tools rimping heads
360 degrees swivel head. 360 degrees swivel head.
Manual type crimper. Remote type crimper.
Cable lug hexagon crimping Cable lug hexagon crimping
Standard die set (total 12pcs) Standard die set (total 12pcs)
35/50/70/95/120/150/185/240/300/400/500/630mm 2 35/50/70/95/120/150/185/240/300/400/500/630mm 2
(i.e. B3035-B30400, B63500, B63630/R30 type) (i.e. B3035-B30400, B63500, B63630/R30 type)
Below 400mm needs to use AR-630 adaptor Below 400mm needs to use AR-630 adaptor
2
2
TP-600
18 tons output
Weight: 6.5kgs
Length: 650mm TP-630H
18 tons output
Weight: 4.8kgs
Length: 240mm
AR-630
Dies adaptor
for TP-600 & TP-630H
R30 Type dies list for TP-600 & TP-630H
For copper lugs
For copper lugs For DIN 46235 copper lugs For MW crimping For copper lugs For aluminum lugs Dies No.:
Dies No.: For DIN 48201 aluminum lugs Dies No.: Australia Australia B63500 (CU500)
B3006 (CU6) Dies No.: MW3035 (CU35) Dies No.: Dies No.: B63630 (CU630)
B3010 (CU10) D3010 (CU10-AL6-K6) MW3050 (CU50) NC3016 (CU16) NA306-35
B3016 (CU16) D3016 (CU16-AL10-K8) MW3070 (CU70) NC3025 (CU25) (AL6-35)
B3025 (CU25) D3025 (CU25-AL16-K10) MW3095 (CU95) NC3035 (CU35) NA3050-70
B3035 (CU35) D3035 (CU35-AL25-K12) MW30120 (CU120) NC3050 (CU50) (AL50-70)
B3050 (CU50) D3050 (CU50-AL35-K14) MW30150 (CU150) NC3070 (CU70) NA3095-120
B3070 (CU70) D3070 (CU70-AL50-K16) MW30185 (CU185) NC3095 (CU95) (AL95-120)
B3095 (CU95) D3095 (CU95-AL70-K18) MW30240 (CU240) NC30120 (CU120) NA30150-185U
B30120 (CU120) D30120 (CU120-AL95-K20) MW30300 (CU300) NC30150 (CU150) (AL150-185 Utilux)
B30150 (CU150) D30150 (CU150-AL120-K22) MW30400 (CU400) NC30185 (CU185) NA30150-185C
(AL150-185 Cabac)
B30185 (CU185) D30185 (CU185-AL150-K25) NC30240 (CU240) NA30240-300
B30240 (CU240) D30240 (CU240-AL185-K28) NC30300 (CU300) (AL300)
B30300 (CU300) D30300 (CU300-AL240-K32) NC30400 (CU400)
B30400 (CU400) D30400 (CU400-AL300-K38)
