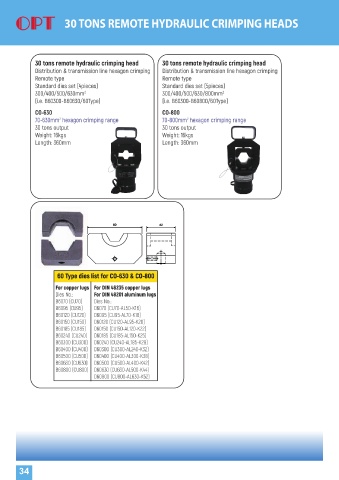

30 TONS REMOTE HYDRAULIC CRIMPING HEADS
ydr
te h
30 tons r
emo
aulic c
30 tons remote hydraulic crimping head rimping head
Distribution & transmission line hexagon crimping Distribution & transmission line hexagon crimping
Remote type Remote type
Standard dies set (4pieces) Standard dies set (5pieces)
300/400/500/630mm 2 300/400/500/630/800mm 2
(i.e. B60300-B60630/60Type) (i.e. B60300-B60800/60Type)
CO-630 CO-800
70-630mm hexagon crimping range 70-800mm hexagon crimping range
2
2
30 tons output 30 tons output
Weight: 16kgs Weight: 16kgs
Length: 360mm Length: 360mm
60 Type dies list for CO-630 & CO-800
For copper lugs For DIN 46235 copper lugs
Dies No.: For DIN 48201 aluminum lugs
B6070 (CU70) Dies No.:
B6095 (CU95) D6070 (CU70-AL50-K16)
B60120 (CU120) D6095 (CU95-AL70-K18)
B60150 (CU150) D60120 (CU120-AL95-K20)
B60185 (CU185) D60150 (CU150-AL120-K22)
B60240 (CU240) D60185 (CU185-AL150-K25)
B60300 (CU300) D60240 (CU240-AL185-K28)
B60400 (CU400) D60300 (CU300-AL240-K32)
B60500 (CU500) D60400 (CU400-AL300-K38)
B60630 (CU630) D60500 (CU500-AL400-K42)
B60800 (CU800) D60630 (CU630-AL500-K44)
D60800 (CU800-AL630-K52)
