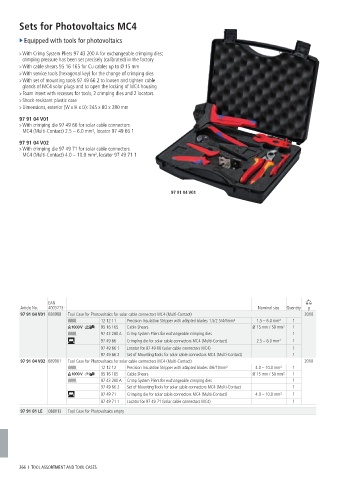

Sets for Photovoltaics MC4

► Equipped with tools for photovoltaics

> With Crimp System Pliers 97 43 200 A for exchangeable crimping dies;
crimping pressure has been set precisely (calibrated) in the factory
> With cable shears 95 16 165 for Cu cables up to Ø 15 mm
> With service tools (hexagonal key) for the change of crimping dies
> With set of mounting tools 97 49 66 2 to loosen and tighten cable
glands of MC4 solar plugs and to open the locking of MC4 housing
> Foam insert with recesses for tools, 2 crimping dies and 2 locators
> Shock-resistant plastic case
> Dimensions, exterior (W x H x D): 345 x 80 x 280 mm
97 91 04 V01
> With crimping die 97 49 66 for solar cable connectors
MC4 (Multi-Contact) 2.5 – 6.0 mm², locator 97 49 66 1

97 91 04 V02
> With crimping die 97 49 71 for solar cable connectors
MC4 (Multi-Contact) 4.0 – 10.0 mm², locator 97 49 71 1

97 91 04 V01

EAN
Article No. 4003773- Nominal size Quantity g
97 91 04 V01 088998 Tool Case for Photovoltaics for solar cable connectors MC4 (Multi-Contact) 2010
12 12 11 Precision Insulation Stripper with adapted blades 1.5/2.5/4/6mm² 1.5 – 6.0 mm² 1
95 16 165 Cable Shears Ø 15 mm / 50 mm² 1
97 43 200 A Crimp System Pliers for exchangeable crimping dies 1
97 49 66 Crimping die for solar cable connectors MC4 (Multi-Contact) 2.5 – 6.0 mm² 1
97 49 66 1 Locator for 97 49 66 (solar cable connectors MC4) 1

97 49 66 2 Set of Mounting Tools for solar cable connectors MC4 (Multi-Contact) 1
97 91 04 V02 089001 Tool Case for Photovoltaics for solar cable connectors MC4 (Multi-Contact) 2010
12 12 12 Precision Insulation Stripper with adapted blades 4/6/10mm² 4.0 – 10.0 mm² 1
95 16 165 Cable Shears Ø 15 mm / 50 mm² 1
97 43 200 A Crimp System Pliers for exchangeable crimping dies 1
97 49 66 2 Set of Mounting Tools for solar cable connectors MC4 (Multi-Contact 1
97 49 71 Crimping die for solar cable connectors MC4 (Multi-Contact) 4.0 – 10.0 mm² 1
97 49 71 1 Locator for 97 49 71 (solar cable connectors MC4) 1

97 91 01 LE 088813 Tool Case for Photovoltaics empty

366 I TOOL ASSORTMENT AND TOOL CASES
