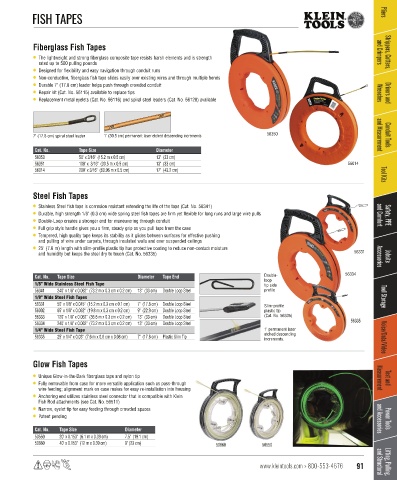

FISH TAPES Pliers

Fiberglass Fish Tapes and Crimpers Strippers, Cutters,
• The lightweight and strong fiberglass composite tape resists harsh elements and is strength
rated up to 500 pulling pounds
• Designed for flexibility and easy navigation through conduit runs
• Non-conductive, fiberglass fish tape slides easily over existing wires and through multiple bends
• Durable 7" (17.8 cm) leader helps push through crowded conduit
• Repair kit (Cat. No. 56115) available to replace tips Wrenches Drivers and
• Replacement metal eyelets (Cat. No. 56116) and spiral steel leaders (Cat. No. 56120) available

49’
50’
56350
7" (17.8 cm) spiral steel leader 1' (30.5 cm) permanent laser etched descending increments and Measurement Conduit Tools
Cat. No. Tape Size Diameter
56350 50' x 3/16" (15.2 m x 0.5 cm) 13" (33 cm)
56351 100' x 3/16" (30.5 m x 0.5 cm) 13" (33 cm) 56014
56014 200' x 3/16" (60.96 m x 0.5 cm) 17" (43.2 cm) Tool Kits

Steel Fish Tapes
• Stainless Steel fish tape is corrosion resistant extending the life of the tape (Cat. No. 56341)
• Durable, high strength 1/8" (0.3 cm) wide spring steel fish tapes are firm yet flexible for long runs and large wire pulls and Comfort Safety, PPE
• Double-Loop creates a stronger end for maneuvering through conduit
• Full grip style handle gives you a firm, steady grip as you pull tape from the case
• Tempered, high quality tape keeps its stability as it glides between surfaces for effective pushing
and pulling of wire under carpets, through insulated walls and over suspended ceilings
• 25' (7.6 m) length with slim-profile plastic tip has protective coating to reduce non-contact moisture
and humidity but keeps the steel dry to touch (Cat. No. 56335) 56331 Accessories Jobsite

Double- 56334
Cat. No. Tape Size Diameter Tape End
loop
1/8" Wide Stainless Steel Fish Tape tip side
56341 240' x 1/8" x 0.062" (73.2 m x 0.3 cm x 0.2 cm) 13" (33 cm) Double Loop Steel profile
1/8" Wide Steel Fish Tapes Tool Storage
56331 50' x 1/8" x 0.045" (15.2 m x 0.3 cm x 0.1 cm) 7" (17.8 cm) Double Loop Steel Slim-profile
56002 65' x 1/8" x 0.062" (19.8 m x 0.3 cm x 0.2 cm) 9" (22.9 cm) Double Loop Steel plastic tip
56333 120' x 1/8" x 0.062" (36.6 m x 0.3 cm x 0.2 cm) 13" (33 cm) Double Loop Steel (Cat. No. 56335)
56334 240' x 1/8" x 0.062" (73.2 m x 0.3 cm x 0.2 cm) 13" (33 cm) Double Loop Steel 56335
1/4" Wide Steel Fish Tape 1' permanent laser
etched descending
56335 25' x 1/4" x 0.03" (7.6 m x 0.6 cm x 0.08 cm) 7" (17.8 cm) Plastic Slim Tip Voice/Data/Video
increments.

Glow Fish Tapes
• Unique Glow-in-the-Dark fiberglass tape and nylon tip Measurement Test and
• Fully removable from case for more versatile application such as pass-through
wire feeding; alignment mark on case makes for easy re-installation into housing
• Anchoring end utilizes stainless steel connector that is compatible with Klein
Fish Rod attachments (see Cat. No. 56511)
• Narrow, eyelet tip for easy feeding through crowded spaces
• Patent pending and Accessories Power Tools

Cat. No. Tape Size Diameter
50550 20' x 0.153" (6.1 m x 0.39 cm) 7.5" (19.1 cm)
50660 40’ x 0.153" (12 m x 0.39 cm) 9" (23 cm)
50660 50550

www.kleintools.com > 800-553-4676 91 and Structural Lifting, Pulling,
