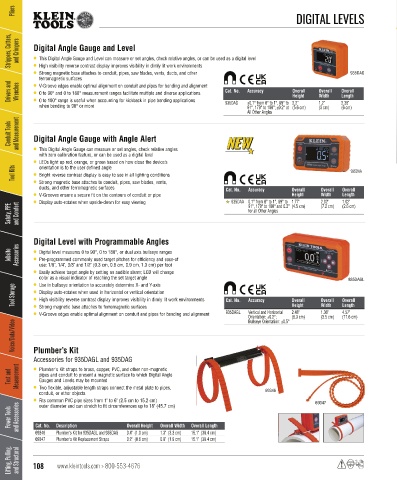

Page 110 - 凯能全英文KleinTools Catalog 167

Pliers

Strippers, Cutters, and Crimpers Digital Angle Gauge and Level

• This Digital Angle Gauge and Level can measure or set angles, check relative angles, or can be used as a digital level
•
• High visibility reverse contrast display improves visibility in dimly lit work environments 935DAG
Strong magnetic base attaches to conduit, pipes, saw blades, vents, ducts, and other
ferromagnetic surfaces
Drivers and Wrenches • V-Groove edges enable optimal alignment on conduit and pipes for bending and alignment Cat. No. Accuracy Overall Overall Overall
•
0 to 90° and 0 to 180° measurement ranges facilitate multiple and diverse applications
Height
Width
Length
•
0 to 180° range is useful when accounting for kickback in pipe bending applications
when bending to 90° or more 935DAG ±0.1° from 0° to 1°, 89° to 2.2" 1.2" 2.36"
(3 cm)
91°, 179° to 180°; ±0.2° at (5.6 cm)
(6 cm)
All Other Angles
Conduit Tools and Measurement Digital Angle Gauge with Angle Alert
•
This Digital Angle Gauge can measure or set angles, check relative angles
with zero calibration feature, or can be used as a digital level
• LEDs light up red, orange, or green based on how close the device’s
Tool Kits • orientation is to the user defined angle 935DAA
Bright reverse contrast display is easy to see in all lighting conditions
• Strong magnetic base attaches to conduit, pipes, saw blades, vents,
ducts, and other ferromagnetic surfaces Cat. No. Accuracy Overall Overall Overall
• V-Grooves ensure a secure fit on the contours of conduit or pipe Height Width Length
• Display auto-rotates when upside-down for easy viewing 935DAA 0.1° from 0° to 1°, 89° to 1.77" 2.82" 1.02"
Safety, PPE and Comfort for all Other Angles
(2.6 cm)
(7.2 cm)
91°, 179° to 180° and 0.2° (4.5 cm)

Digital Level with Programmable Angles
Jobsite Accessories • Digital level measures 0 to 90°, 0 to 180°, or dual axis bullseye ranges
•
Pre-programmed commonly used target pitches for efficiency and ease-of
• use: 1/8", 1/4", 3/8" and 1/2" (0.3 cm, 0.6 cm, 0.9 cm, 1.3 cm) per foot
Easily achieve target angle by setting an audible alarm; LCD will change
color as a visual indicator of reaching the set target angle 5DAGL
•
Use in bullseye orientation to accurately determine X- and Y-axis
Tool Storage • Display auto-rotates when used in horizontal or vertical orientation Cat. No. Accuracy Overall Overall Overall
•
High visibility reverse contrast display improves visibility in dimly lit work environments
•
1.36"
2.48"
4.57"
• Strong magnetic base attaches to ferromagnetic surfaces 935DAGL Vertical and Horizontal Height Width Length
V-Groove edges enable optimal alignment on conduit and pipes for bending and alignment
(6.3 cm)
(3.5 cm)
Orientation: ±0.2°;
(11.6 cm)
Bullseye Orientation: ±0.5°
Voice/Data/Video
Plumber’s Kit
Accessories for 935DAGL and 935DAG
Test and Measurement • Plumber's Kit straps to brass, copper, PVC, and other non-magnetic
pipes and conduit to present a magnetic surface to which Digital Angle
Gauges and Levels may be mounted
•
Two flexible, adjustable length straps connect the metal plate to pipes,
conduit, or other objects 69346
• Fits common PVC pipe sizes from 1" to 6" (2.5 cm to 15.2 cm)
outer diameter and can stretch to fit circumferences up to 18" (45.7 cm)
Power Tools and Accessories
Cat. No.
69346 Description Overall Height Overall Width Overall Length
15.1" (38.4 cm)
0.4" (1.0 cm)
Plumber’s Kit for 935DAGL and 935DAG
1.3" (3.3 cm)
69347 Plumber's Kit Replacement Straps 0.2" (0.6 cm) 0.8" (1.9 cm) 15.1" (38.4 cm)
Lifting, Pulling, and Structural 108 www.kleintools.com > 800-553-4676
