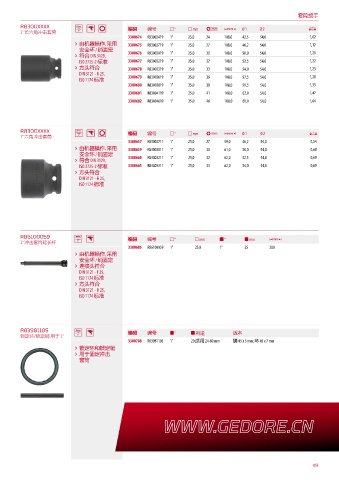

Range of Sockets
套筒扳手
R8300XXXX 25mm 编码 编号 Ø 1 Ø 2
1" 长六角冲击套筒 1” Q " Q mm ! y 0
3300674 R83002419 1" 25,0 24 108,0 42,5 54,0 1,02
› 由机器操作, 采用 3300675 R83002719 1" 25,0 27 108,0 46,2 54,0 1,12
安全环 / 销固定
› 符合 DIN 3129, 3300676 R83003019 1" 25,0 30 108,0 50,0 54,0 1,20
ISO 2725-2 标准 3300677 R83003219 1" 25,0 32 108,0 52,5 54,0 1,22
› 方头符合 3300678 R83003319 1" 25,0 33 108,0 54,0 54,0 1,23
DIN 3121 - H 25,
ISO 1174 标准 3300679 R83003619 1" 25,0 36 108,0 57,5 54,0 1,28
3300680 R83003819 1" 25,0 38 108,0 59,5 54,0 1,33
3300681 R83004119 1" 25,0 41 108,0 62,0 54,0 1,47
3300682 R83004619 1" 25,0 46 108,0 68,0 54,0 1,64

R8300XXXX 25mm 编码 编号 Q " Q mm ! y Ø 1 Ø 2 0
1" 六角冲击套筒 1”
3300657 R83002711 1" 25,0 27 59,0 46,2 54,0 0,54
› 由机器操作, 采用 3300659 R83003011 1" 25,0 30 61,0 50,0 54,0 0,68
安全环 / 销固定
› 符合 DIN 3129, 3300660 R83003211 1" 25,0 32 62,0 52,5 54,0 0,69
ISO 2725-2 标准 3300661 R83003311 1" 25,0 33 62,0 54,0 54,0 0,69
› 方头符合
DIN 3121 - H 25,
ISO 1174 标准

R86100059 25mm 编码 编号
1" 冲击套筒延长杆 1” Q " Q mm a " a mm y
3300685 R86100059 1" 25,0 1" 25 300
› 由机器操作, 采用
安全环 / 销固定
› 连接头符合
DIN 3121 - F 25,
ISO 1174 标准
› 方头符合
DIN 3121 - H 25,
ISO 1174 标准

R83981105 25mm 编码 编号 版本
锁定环/锁定销 用于 1" 1” a " a 用途
3300708 R83981105 1" 20 适用 24-80 mm 销 45 x 5 mm; 环 45 x 7 mm
› 锁定环和锁定销
› 用于固定冲击
套筒

WWW.GEDORE.CN

053
