NEW Body:
• Dimensions: H 985 x W 1200 x D 635 mm
• 30 mm thick multiplex laminated beech board, surface additionally protected by linseed oil varnish
• Worktop offset to the rear allows flush parking against the wall
• A drawer unit in trolley width
1 • Side panels with Euro perforation 10 x 38 mm for attaching hooks and tools
• Manoeuvrable and easy to steer with drive/steer handle
• Sheet steel, corrosion-resistant and scratch-resistant powder-coated, GEDORE blue
Drawers:
• Design with four drawers
• Central lock with cylinder lock
• Wide drawers (W 998 x D 474 mm) with full extension, can be taken out
• Single lock prevents opening of more than one drawer, one-hand operation
• Ball-bearing guide rails with self-closing mechanism
• Load-carrying capacity per drawer 70 kg
• Sheet steel, corrosion and scratch-resistant powder-coating, GEDORE blue

KL-0039-1003 - Mounting adapter for hydraulic cylinders
KL-0039-2120-2 - Quick-release nut (M20)
2 KL-0040-2812-5 - Thrust nut (M24)
KL-0040-2812-1 - Thrust/pull spindle (M24 x 590 mm)
KL-0040-2846-1 - Pull spindle (M20 x 590 mm)
32 .. - Sockets, 3/4" (hexagon: 22, 24, 27, 30, 32, 36, 38, 41, 46 mm)
3287 - Cross-handle, 3/4" (500 mm)
3290-.. - Extensions, 3/4" (200 + 400 mm)
3293 U-2 - Reversible ratchet, 3/4"
7 XL .. - Ring-fork spanner (extra long): 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24, 27, 30, 32, 36, 41 mm
IN 32 L 14-155 - Screwdriver bit socket, 3/4" (inner hexagon: 14 mm)

KL-1005-100 A - Wheel hub puller kit
3 KL-1039-111 - Press frame 28 tonnes
KL-1005-110 - Wheel hub puller compact bearing

KL-0040-2800 - Hydraulic cylinder 28t
KL-0165-3 A - Set of ball joint breakers (with six forks)
4 KL-0169-82 - Removal tool for tie-rod end
KL-1010-1010 - Drive sleeve set Ø70 mm
KL-1010-120 A - Thrust piece/sleeve set Ø60
KL-1010-140 B - Thrust piece/sleeve set Ø65 mm
KL-1029-300 - Wheel hub lifting tool
KL-1070-1224 - Slogging double ring spanner SW24
600 E-1500 - Metalworker's hammer 1.5 kg

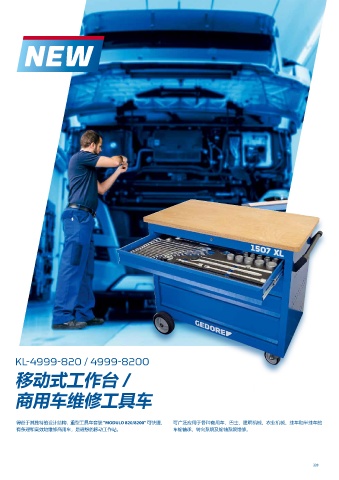

KL-4999-820 / 4999-8200

MOBILE WORKSHOP/ Content / range of application: • Separating of ball joint connections on steering and axle systems
移动式工作台 /
• Various drive pcs for operating the tool kits (depending on model with hydraulic cylinder 28 t)
• Loosening and adjusting of tie rod ends
• Pressing out wheel hubs with removable hub cap
商用车维修工具车 • For wheel hubs with bolt circle diameters 8x275 mm and 10x335 mm • Lifting of heavy-weight wheel hubs with a workshop crane
ASSEMBLY TROLLEY MODULO
• For compact wheel bearings with a stud diameter 10x120 mm to 14x144 mm
• Loosening and tightening of brake calliper screw connections which are hard to unscrew
• For pressing bushings, bearings, and bolts in and out
• Including high-quality GEDORE hand tools

• Removal and installation of slotted and closed silent blocks
FOR COMMERCIAL VEHICLES 93 pcs The suitable hydraulic pump can be found in our scope of products.
得益于其独特的设计结构，重型工具车套装 "MODULO 820/8200" 可快捷、
可广泛应用于各种商用车、巴士、建筑机械、农业机械、挂车和半挂车的
有条理和高效地维修商用车，是理想的移动工作站。
车轮轴承、转向系统及轮轴系统维修。
Code No. W/H/D Load-carrying capacity (static / dynamic) Content
In its unique composition, the assembly trolley "MODULO 820/8200" Universally applicable for repairs on wheel bearings, steering and 3425835 KL-4999-820 1,200 / 985 / 635 mm 1,000 kg / 750 kg incl. hydraulic cylinder
for commercial vehicles is the ideal mobile workstation for fast, axle systems on commercial vehicles, buses, construction machinery, 3427587 KL-4999-8200 1,200 / 985 / 635 mm 1,000 kg / 750 kg without hydraulic cylinder
organised, and efficient repairs. agricultural machinery, trailers, and semi-trailers.
339
