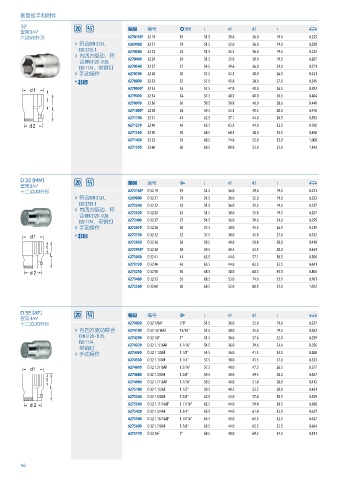

Page 162 - 吉多瑞2023版通用工具

套筒扳手和附件
套筒扳手和附件 编码 编号
32
套筒3/4" ! L d1 d2 t 0
六边UD外形 6270110* 32 19 19 51.5 29.6 36.0 19.0 0.225
› 符合DIN 3124、 6269960 32 21 21 51.5 32.0 36.0 19.0 0.228
ISO 2725-1 6270380 32 22 22 51.5 33.3 36.0 19.0 0.232
› 内四方驱动，符
合 DIN 3120 - D 20 6270460 32 24 24 51.5 35.8 38.0 19.5 0.267
ISO 1174，带销钉 6270540 32 27 27 54.5 39.6 36.0 24.0 0.271
› 手动操作 6270700 32 30 30 57.5 43.3 38.0 26.0 0.331
* 非标 6270890 32 32 32 57.5 45.8 38.0 27.0 0.345
6270030* 32 33 33 57.5 47.0 40.0 26.5 0.392
6279410 32 34 34 57.5 48.3 40.0 26.5 0.404
6270970 32 36 36 59.5 50.8 40.0 28.0 0.448
6271000* 32 38 38 59.5 53.3 40.5 28.0 0.476
6271190 32 41 41 62.5 57.1 44.0 30.5 0.593
6271270 32 46 46 65.5 63.3 44.0 32.5 0.700
6271350 32 50 50 68.5 68.3 48.0 34.5 0.848
6271430 32 55 55 68.5 74.6 53.0 33.0 1.008
6271510 32 60 60 68.5 80.8 53.0 33.0 1.143

套筒扳手和附件 编码 编号 L d1 d2 t
D 32 (MM)
套筒3/4" 3 0
十二边UD外形 6272160* D 32 19 19 51.5 36.0 29.6 19.0 0.221
› 符合DIN 3124、 6289800 D 32 21 21 51.5 36.0 32.0 19.0 0.223
ISO 2725-1 6272240 D 32 22 22 51.5 36.0 33.3 19.0 0.227
› 内四方驱动，符 6272320
合 DIN 3120 - D 20 D 32 24 24 51.5 38.0 35.8 19.5 0.257
ISO 1174，带销钉 6272400 D 32 27 27 54.5 36.0 39.6 24.0 0.255
› 手动操作 6272670 D 32 30 30 57.5 38.0 43.3 26.0 0.319
* 非标 6272750 D 32 32 32 57.5 38.0 45.8 27.0 0.332
6272830 D 32 36 36 59.5 40.0 50.8 28.0 0.418
6272910* D 32 38 38 59.5 40.5 53.3 28.0 0.441
6273050 D 32 41 41 62.5 44.0 57.1 30.5 0.500
6273130 D 32 46 46 65.5 44.0 63.3 32.5 0.641
6273210 D 32 50 50 68.5 48.0 68.3 34.5 0.800
6273480 D 32 55 55 68.5 53.0 74.6 33.0 0.961
6273560 D 32 60 60 68.5 53.0 80.8 33.0 1.052

套筒扳手和附件 编码 编号
D 32 (AF)
套筒3/4" 3 L d1 d2 t 0
十二边UD外形 6274020 D 32 7/8AF 7/8" 51.5 36.0 33.6 19.0 0.227
› 内四方驱动符合 6274100 D 32 15/16AF 15/16" 51.5 38.0 35.6 19.5 0.262
DIN 3120 - D 20 6274290 D 32 1AF 1" 51.5 36.0 37.6 22.0 0.229
ISO 1174，
带销钉 6274370 D 32 1.1/16AF 1.1/16" 54.5 36.0 39.6 24.0 0.256
› 手动操作 6274450 D 32 1.1/8AF 1.1/8" 54.5 36.0 41.5 24.0 0.268
6274530 D 32 1.1/4AF 1.1/4" 57.5 38.0 45.5 27.0 0.333
6274610 D 32 1.5/16AF 1.5/16" 57.5 40.0 47.5 26.5 0.377
6274880 D 32 1.3/8AF 1.3/8" 59.5 40.0 49.5 28.0 0.407
6274960 D 32 1.7/16AF 1.7/16" 59.5 40.0 51.4 28.0 0.413
6275180 D 32 1.1/2AF 1.1/2" 59.5 40.5 53.3 28.0 0.431
6275260 D 32 1.5/8AF 1.5/8" 62.5 44.0 57.4 30.5 0.539
6275340 D 32 1.11/16AF 1.11/16" 62.5 44.0 59.4 30.5 0.568
6275420 D 32 1.3/4AF 1.3/4" 65.5 44.0 61.4 32.5 0.627
6275500 D 32 1.13/16AF 1.13/16" 65.5 44.0 63.3 32.5 0.637
6275690 D 32 1.7/8AF 1.7/8" 65.5 44.0 65.3 32.5 0.664
6275770 D 32 2AF 2" 68.5 48.0 69.2 34.5 0.811
