IDEAL-TEK | CUTTERS & PLIERS IDEAL-TEK | CUTTERS & PLIERS

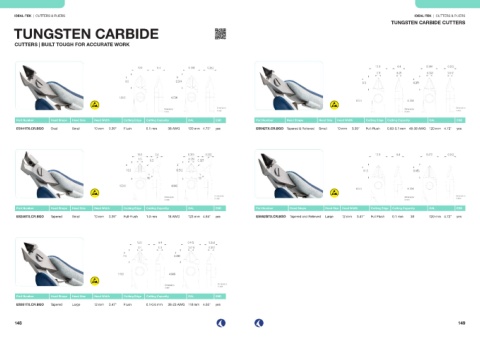

TUNGSTEN CARBIDE CUTTERS
TUNGSTEN CARBIDE

CUTTERS | BUILT TOUGH FOR ACCURATE WORK

Part Number Head Shape Head Size Head Width Cutting Edge Cutting Capacity OAL ESD Part Number Head Shape Head Size Head Width Cutting Edge Cutting Capacity OAL ESD
ES141TX.CR.BGO Oval Small 10 mm 0.39" Flush 0.1 mm 38 AWG 120 mm 4.72" yes ES542TX.CR.BGO Tapered & Relieved Small 10 mm 0.39" Full-Flush 0.03-0.1 mm 48-38 AWG 120 mm 4.72" yes

Part Number Head Shape Head Size Head Width Cutting Edge Cutting Capacity OAL ESD Part Number Head Shape Head Size Head Width Cutting Edge Cutting Capacity OAL ESD

ES248TX.CR.BGO Tapered Small 10 mm 0.39" Full-Flush 1.0 mm 18 AWG 123 mm 4.84" yes ES552GTX.CR.BGO Tapered and Relieved Large 12 mm 0.47" Full Flush 0.1 mm 38 120 mm 4.72" yes

Part Number Head Shape Head Size Head Width Cutting Edge Cutting Capacity OAL ESD

ES351TX.CR.BGO Tapered Large 12 mm 0.47" Flush 0.1-0.6 mm 38-23 AWG 118 mm 4.65" yes

148 149
