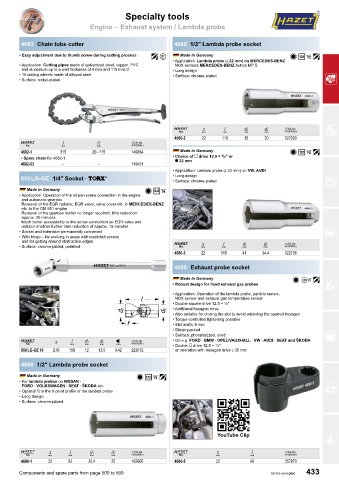

Page 435 - HAZET哈蔡特2024英文样本

Specialty tools

Engine – Exhaust system / Lambda probe

4682 Chain tube cutter 4680 1/2″ Lambda probe socket

• Easy adjustment due to thumb screw during cutting process E/ Made in Germany c8 E
• Application: Cutting pipes made of galvanized steel, copper, PVC • Application: Lambda probe (Ä 22 mm) on MERCEDES-BENZ
NOX sensors MERCEDES-BENZ Actros MP 5
and aluminium up to a wall thickness of 6 mm and 115 mm x • Long design
• 15 cutting wheels made of alloyed steel • Surface: chrome-plated
• Surface: nickel-plated G

1 S K G H 4 F

4680-2 22 110 36 30 022090
1 K t 4
4682-1 315 20 – 115 149384 Made in Germany c8 E
1
• Spare chain for 4682-1 • Choice of j drive 12.5 = /2″ or
g 32 mm
4682-03 – – 149421
• Application: Lambda probe (Ä 22 mm) on VW, AUDI
• Long design
850 LG-GE 1/4″ Socket ∙ h
• Surface: chrome-plated D
Made in Germany e6
• Application: Operation of the oil pan screw connection in the engine
and automatic gearbox.
Removal of the EGR radiator, EGR valve, valve cover etc. in MERCEDES-BENZ
etc. in the OM 651 engine
Removal of the gearbox holder no longer required, time reduction:
approx. 20 minutes
Much better accessibility to the screw connection on EGR valve and
radiator enables further time reduction of approx. 15 minutes
• Socket and extension permanently connected R
• With hinge – for working in areas with restricted access
and for getting around obstructive edges 1 4
• Surface: chrome-plated, polished S K G H
4680-3 22 110 41 34.4 022106

4680 Exhaust probe socket
Made in Germany cs E
• Robust design for fixed exhaust gas probes C
• Application: Operation of the lambda probe, particle sensor,
NOX sensor and exhaust gas temperature sensor
1
• Double square drive 12.5 = ⁄2″
• Additional hexagon drive
• Also suitable for closing the slot to avoid widening the opened hexagon
• Torque-controlled tightening possible
• Slot width: 8 mm
• Blister packed
• Surface: phosphatized, oiled O
1 Ä K G H r 4 • On e.g. FORD ∙ BMW ∙ OPEL/VAUXHALL ∙ VW ∙ AUDI ∙ SEAT and ŠKODA
• Double j drive 12.5 = /2″
1
850 LG-GE 10 E10 150 12 13.5 9.42 223572 or operation with hexagon drive Ä 30 mm
4680 1/2″ Lambda probe socket

Made in Germany c8 E
• For lambda probes on NISSAN ∙
FORD ∙ VOLKSWAGEN ∙ SEAT ∙ ŠKODA etc. A
• Optimal fit to the 6-point profile of the lambda probe
• Long design
• Surface: chrome-plated

YouTube Clip
U

1 S K G H 4 1 S K 4
4680-1 22 92 30.4 25 165605 4680-5 22 66 057870

Components and spare parts from page 500 to 509 Errors excepted 433
