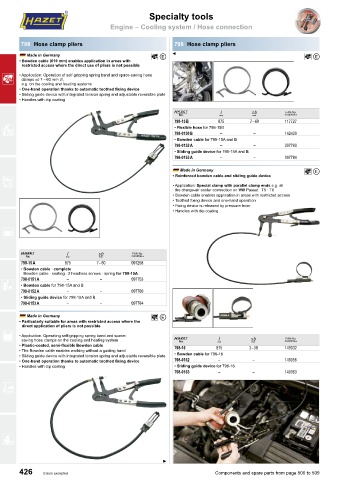

Page 428 - HAZET哈蔡特2024英文样本

Specialty tools Specialty tools

Engine – Cooling system / Hose connection Engine – Cooling system / Hose connection

798 Hose clamp pliers 798 Hose clamp pliers

Made in Germany G/ C G/
• Bowden cable (610 mm) enables application in areas with
restricted access where the direct use of pliers is not possible
G • Application: Operation of self-gripping spring band and space-saving hose
clamps Ü 7 – 60 mm x,
e.g. on the cooling and heating systems
• One-hand operation thanks to automatic toothed fixing device
• Sliding guide device with integrated tension spring and adjustable reversible plate
• Handles with dip coating

1 K U 4
798-15 B 875 7 – 60 117727
F • Flexible hose for 798-15B – 142439
798-0150 B
–
• Bowden cable for 798-15A and B
798-0152 A – – 097760
• Sliding guide device for 798-15A and B
798-0153 A – – 097784

Made in Germany G/
• Reinforced bowden cable and sliding guide device
D • Application: Special clamp with parallel clamp ends e.g. at
the charge-air cooler connection on VW Passat ∙ T5 ∙ T6
• Bowden cable enables application in areas with restricted access
• Toothed fixing device and one-hand operation
• Fixing device is released by pressure lever
• Handles with dip coating

R

1 K U 4
798-15 A 875 7 – 60 097258
• Bowden cable ∙ complete
Bowden cable ∙ coating ∙ 2 headless screws ∙ spring for 798-15A
798-0151 A – – 097753
C • Bowden cable for 798-15A and B – 097760
798-0152 A
–
• Sliding guide device for 798-15A and B
798-0153 A – – 097784

Made in Germany G/
• Particularly suitable for areas with restricted access where the
direct application of pliers is not possible
O • Application: Operating self-gripping spring band and space- 1 K U 4
saving hose clamps on the cooling and heating system
• Plastic-coated, semi-flexible Bowden cable 798-16 875 3 – 50 149032
• The Bowden cable enables working without a guiding hand
• Sliding guide device with integrated tension spring and adjustable reversible plate • Bowden cable for 798-16
• One-hand operation thanks to automatic toothed fixing device 798-0162 – – 149056
• Handles with dip coating • Sliding guide device for 798-16
798-0163 – – 149063

A

U

B
426 Errors excepted Components and spare parts from page 500 to 509
