Hand tools

Pullers / Extractors

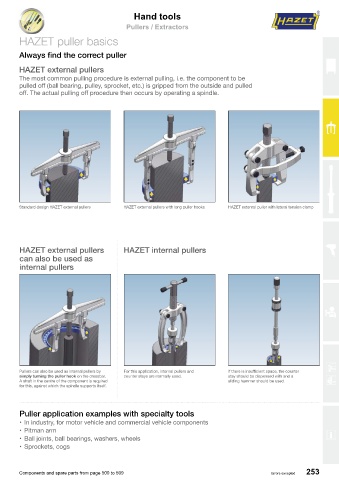

HAZET puller basics

Always find the correct puller

HAZET external pullers

The most common pulling procedure is external pulling, i.e. the component to be
pulled off (ball bearing, pulley, sprocket, etc.) is gripped from the outside and pulled
off. The actual pulling off procedure then occurs by operating a spindle.

Standard design HAZET external pullers HAZET external pullers with long puller hooks HAZET external puller with lateral tension clamp

HAZET external pullers HAZET internal pullers
can also be used as
internal pullers

Pullers can also be used as internal pullers by For this application, internal pullers and If there is insufficient space, the counter
simply turning the puller hook on the crossbar. counter stays are normally used. stay should be dispensed with and a
A shaft in the centre of the component is required sliding hammer should be used.
for this, against which the spindle supports itself.

Puller application examples with specialty tools

• In industry, for motor vehicle and commercial vehicle components
• Pitman arm
• Ball joints, ball bearings, washers, wheels
• Sprockets, cogs

Components and spare parts from page 500 to 509 Errors excepted 253
