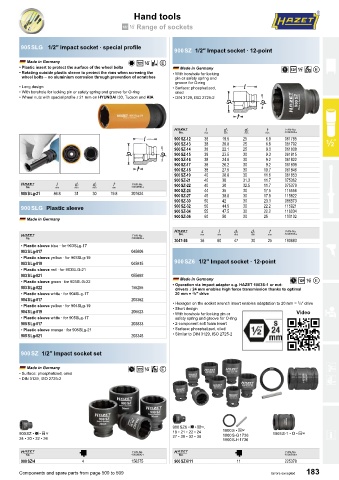

Page 185 - HAZET哈蔡特2024英文样本

Hand tools

3 Range of sockets

905 SLG 1/2″ Impact socket ∙ special profile
900 SZ 1/2″ Impact socket ∙ 12-point
Made in Germany #8 C/
• Plastic insert to protect the surface of the wheel bolts Made in Germany % 8 F/
• Rotating outside plastic sleeve to protect the rims when screwing the • With borehole for locking
wheel bolts – no aluminium corrosion through prevention of scratches pin or safety spring and
groove for O-ring
• Long design • Surface: phosphatized,
• With borehole for locking pin or safety spring and groove for O-ring oiled
• Wheel nuts with special profile Ä 21 mm on HYUNDAI i30, Tucson and KIA • DIN 3129, ISO 2725-2

1 K G H c 4
900 SZ-12 38 19.5 25 6.8 061785
900 SZ-13 38 20.8 25 6.8 061792 1 ⁄2
900 SZ-14 38 22.1 25 9.3 061808
900 SZ-15 38 23.5 30 9.3 061815
900 SZ-16 38 24.8 30 9.2 061822
900 SZ-17 38 26.2 30 9.2 061839
900 SZ-18 38 27.5 30 10.7 061846
900 SZ-19 40 28.8 30 11.6 061853
900 SZ-21 40 30 31.3 11.7 075362
1 K G H c 4 900 SZ-22 40 30 32.5 11.7 075379
905 S Lg-21 86.8 31 30 19.8 201624 900 SZ-24 44 35 30 17.5 115556
30
38.8
900 SZ-27
115822
17.9
45
900 SZ-30 50 42 30 23.3 086573
900 SLG Plastic sleeve 900 SZ-32 50 44.5 30 22.2 115921
900 SZ-34 55 47.5 30 22.2 116034
900 SZ-36 60 50 30 25 100132
Made in Germany

1 4
1 4 S K G H c
3047-36 36 60 47 30 25 190683
• Plastic sleeve blue ∙ for 903SLg-17
903 S Lg-017 045808
• Plastic sleeve yellow ∙ for 903SLg-19
903 S Lg-019 045815 900 SZ6 1/2″ Impact socket ∙ 12-point
• Plastic sleeve red ∙ for 903SLG-21
903 S Lg-021 055692
• Plastic sleeve green ∙ for 903SLG-22 Made in Germany % 8 /
903 S Lg-022 155255 • Operation via impact adapter e.g. HAZET 1003S-1 or nut-
drivers Ä 24 mm enables high force transmission thanks to optimal
3
• Plastic sleeve white ∙ for 904SLg-17 20 mm = /4″ drive
904 S Lg-017 203352 3
• Plastic sleeve yellow ∙ for 904SLg-19 • Hexagon on the socket wrench insert enables adaptation to 20 mm = /4″ drive
• Short design
904 S Lg-019 205523 • With borehole for locking pin or Video
• Plastic sleeve white ∙ for 905SLg-17 safety spring and groove for O-ring
905 S Lg-017 203833 • 2-component soft foam insert
• Plastic sleeve orange ∙ for 905SLg-21 • Surface: phosphatized, oiled
905 S Lg-021 203345 • Similar to DIN 3129, ISO 2725-2
900 SZ 1/2″ Impact socket set

Made in Germany % 8 F/
• Surface: phosphatized, oiled
• DIN 3129, ISO 2725-2

900 SZ6 • % • 8,
19 • 21 • 22 • 24 1000 S • 9
900 SZ • % • 8 1000 S-G 1736 1003 S-1 • b • 9
24 • 30 • 32 • 36 27 • 30 • 32 • 36 1000 S-H 1736

1 è 4 1 è 4
900 SZ/4 4 156375 900 SZ 6/11 11 225378

Components and spare parts from page 500 to 509 Errors excepted 183
