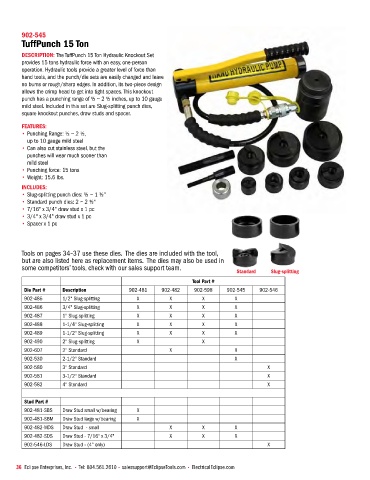

902-545
TuffPunch 15 Ton

DESCRIPTION: The TuffPunch 15 Ton Hydraulic Knockout Set
provides 15 tons hydraulic force with an easy, one‑person
operation. Hydraulic tools provide a greater level of force than
hand tools, and the punch/die sets are easily changed and leave
no burns or rough/sharp edges. In addition, its two‑piece design
allows the crimp head to get into tight spaces. This knockout
punch has a punching range of ½ ~ 2 ½ inches, up to 10 gauge
mild steel. Included in this set are Slug‑splitting punch dies,
square knockout punches, draw studs and spacer.
FEATURES:
• Punching Range: ½ ~ 2 ½,
up to 10 gauge mild steel
• Can also cut stainless steel, but the
punches will wear much sooner than
mild steel
• Punching force: 15 tons
• Weight: 15.6 lbs.
INCLUDES:
• Slug‑splitting punch dies: ½ ~ 1 ½"
• Standard punch dies: 2 ~ 2 ½"
• 7/16" x 3/4" draw stud x 1 pc
• 3/4" x 3/4" draw stud x 1 pc
• Spacer x 1 pc

Tools on pages 34–37 use these dies. The dies are included with the tool,
but are also listed here as replacement items. The dies may also be used in
some competitors’ tools, check with our sales support team.
Standard Slug-splitting
Tool Part #
Die Part # Description 902‑481 902‑482 902‑598 902‑545 902‑546
902‑485 1/2" Slug‑splitting X X X X
902‑486 3/4" Slug‑splitting X X X X
902‑487 1" Slug‑splitting X X X X
902‑488 1‑1/4" Slug‑splitting X X X X
902‑489 1‑1/2" Slug‑splitting X X X X
902‑490 2" Slug‑splitting X X
902‑607 2" Standard X X
902‑530 2‑1/2" Standard X
902‑580 3" Standard X
902‑581 3‑1/2" Standard X
902‑582 4" Standard X

Stud Part #
902‑481‑SBS Draw Stud small w/bearing X
902‑481‑SBM Draw Stud large w/bearing X
902‑482‑MDS Draw Stud ‑ small X X X
902‑482‑SDS Draw Stud ‑ 7/16" x 3/4" X X X
902‑546‑LDS Draw Stud ‑ (4" only) X
