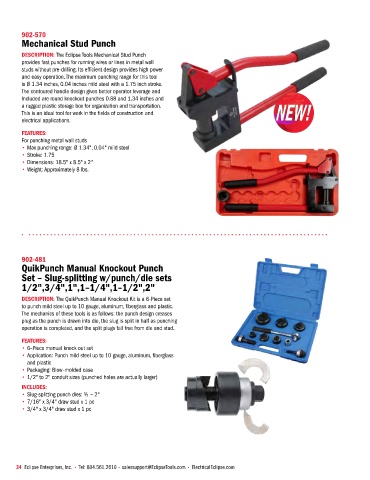

Page 36 - EclipseTools_2019-2020_Electrical

902-570
Mechanical Stud Punch

DESCRIPTION: The Eclipse Tools Mechanical Stud Punch
provides fast punches for running wires or lines in metal wall
studs without pre‑drilling. Its efficient design provides high power
and easy operation. The maximum punching range for this tool
is Ø 1.34 inches, 0.04 inches mild steel with a 1.75 inch stroke.
The contoured handle design gives better operator leverage and
Included are round knockout punches 0.88 and 1.34 inches and
a rugged plastic storage box for organization and transportation.
This is an ideal tool for work in the fields of construction and
electrical applications.

FEATURES:
For punching metal wall studs
• Max punching range: Ø 1.34", 0.04" mild steel
• Stroke: 1.75
• Dimensions: 18.5" x 8.5" x 2"
• Weight: Approximately 8 lbs.

902-481
QuikPunch Manual Knockout Punch
Set – Slug-splitting w/punch/die sets
1/2",3/4",1",1–1/4",1–1/2",2"

DESCRIPTION: The QuikPunch Manual Knockout Kit is a 6‑Piece set
to punch mild steel up to 10 gauge, aluminum, fiberglass and plastic.
The mechanics of these tools is as follows: the punch design creases
plug as the punch is drawn into die, the slug is split in half as punching
operation is completed, and the split plugs fall free from die and stud.

FEATURES:
• 6–Piece manual knock out set
• Application: Punch mild steel up to 10 gauge, aluminum, fiberglass
and plastic
• Packaging: Blow–molded case
• 1/2" to 2" conduit sizes (punched holes are actually larger)
INCLUDES:
• Slug‑splitting punch dies: ½ ~ 2"
• 7/16" x 3/4" draw stud x 1 pc
• 3/4" x 3/4" draw stud x 1 pc
