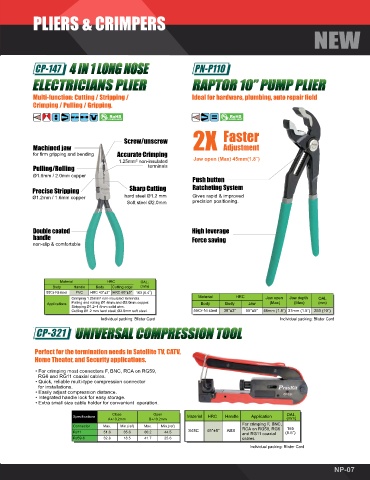

PLIERS & CRIMPERS

NEW

CP-147 4 IN 1 LONG NOSE PN-P110
ELECTRICIANS PLIER RAPTOR 10” PUMP PLIER

Multi-function: Cutting / Stripping / Ideal for hardware, plumbing, auto repair field
Crimping / Pulling / Gripping.

Faster
Screw/unscrew
Machined jaw 2X Adjustment
for firm gripping and bending Accurate Crimping
1.25mm² non-insulated Jaw open (Max) 45mm(1.8˝)
Pulling/Rolling terminals
Ø1.6mm / 2.0mm copper
Push button
Precise Stripping Sharp Cutting Ratcheting System
Ø1.2mm / 1.6mm copper hard steel Ø1.2 mm Gives rapid & improved
Soft steel Ø2.0mm precision positioning.

Double coated High leverage
handle Force saving
non-slip & comfortable

Material HRC OAL.
Body Handle Body Cutting edge (mm)
55Cr-Ni steel PVC HRC 43°±3° HRC 60°±5° 163 (6.4˝)
Crimping 1.25mm² non-insulated terminals. Material HRC Jaw open Jaw depth OAL
Applications Pulling and rolling Ø1.6mm and Ø2.0mm copper. Body Body Jaw (Max) (Max) (mm)
Stripping Ø1.2~1.6mm solid wire.
Cutting Ø1.2 mm hard steel, Ø2.0mm soft steel. 55Cr-Ni steel 38°±3° 55°±5° 45mm (1.8˝) 37mm (1.5˝) 253 (10˝)
Individual packing: Blister Card Individual packing: Blister Card
CP-321 UNIVERSAL COMPRESSION TOOL

Perfect for the termination needs in Satellite TV, CATV,
Home Theater, and Security applications.

• For crimping most connectors F, BNC, RCA on RG59,
RG6 and RG11 coaxial cables.
• Quick, reliable multi-type compression connector
for installations.
• Easily adjust compression distance.
• Integrated handle lock for easy storage.
• Extra small size cable holder for convenient operation.

Specifications Close Open Material HRC Handle Application OAL.
A+/-0.2mm B+/-0.2mm (mm)
For crimping F, BNC,
Connector Max. Min.(ref) Max. Min.(ref) RCA on RG59, RG6 165
RJ11 51.6 35.6 60.2 44.5 S45C 45°±5° ABS and RG11 coaxial (6.5˝)
RJ59-6 32.8 18.5 41.7 25.6 cables
Individual packing: Blister Card
