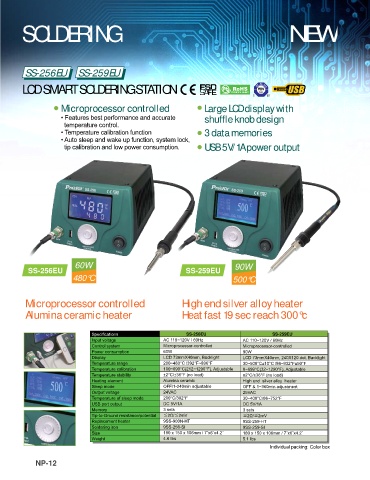

Page 13 - EclipseTools_CAT2017_Full

SOLDERING NEW

SS-256EU SS-259EU

LCD SMART SOLDERING STATION

Microprocessor controlled Large LCD display with
• Features best performance and accurate shuffle knob design
temperature control.
• Temperature calibration function 3 data memories
• Auto sleep and wake up function, system lock,
tip calibration and low power consumption. USB 5V/1A power output

60W 9 0W
6
0W
90W
SS-256EU SS-259EU
480°C
4 80°C 500°C
500°C
Microprocessor controlled High end silver alloy heater
Alumina ceramic heater Heat fast 19 sec reach 300°c

Specificationn SS-256EU SS-259EU
Input voltage AC 110~120V / 60Hz AC 110~120V / 60Hz
Control system Microprocessor-controlled Microprocessor-controlled
Power consumption 60W 90W
Display LCD 73mmX40mm, Backlight LCD 73mmX40mm, 240X120 dot. Backlight
Temperature range 200~480°C /392°F~896°F 30~500°C±10°C /86~932°F±50°F
Temperature calibration 100~699°C(212~1290°F), Adjustable 0~699°C(32~1290°F), Adjustable
Temperature stability ±2°C/±36°F (no load) ±2°C/±36°F (no load)
Heating element Alumina ceramic High end silver alloy heater
Sleep mode OFF/1-240min adjustable OFF & 1~360min adjustment
Output voltage 24VAC 25VAC
Temperature of sleep mode 200°C/392°F 30~400°C/86~752°F
USB port output DC 5V/1A DC 5V/1A
Memory 3 sets 3 sets
Tip-to-Ground resistance/potential ≦2Ω/≦2mV ≦2Ω/≦2mV
Replacement heater 9SS-900N-HT 9SS-259-HT
Soldering iron 9SS-256-SI 9SS-259-SI
Size 180 x 150 x 106mm / 7˝x6˝x4.2˝ 180 x 150 x 106mm / 7˝x6˝x4.2˝
Weight 4.6 Ibs 5.1 Ibs
Individual packing: Color box
NP-12
