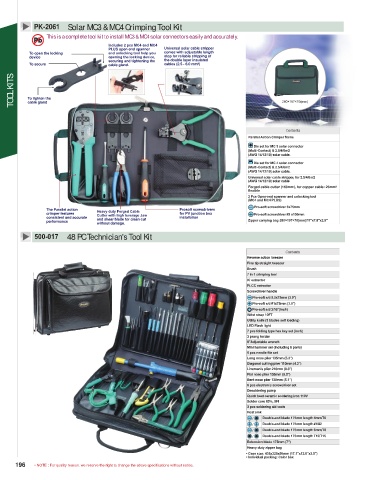

Page 213 - EclipseTools_CAT2017_Full

PK-2061 Solar MC3 & MC4 Crimping Tool Kit

This is a complete tool kit to install MC3 & MC4 solar connectors easily and accurately.
Includes 2 pcs MC4 and MC4
PLUS open-end spanner Universal solar cable stripper
To open the locking and unlocking tool help you comes with adjustable length
device opening the locking device, stop for reliable stripping of
securing and tightening the the double layer insulated
To secure cable gland. cables (2.5 - 6.0 mm²)
TOOL KITS To tighten the 280×197×70(mm)

cable gland

Contents
Parallel Action Crimper frame
Die set for MC 3 solar connector
(Multi-Contact) & 2.5/4/6m2
(AWG 14/12/10) solar cable.
Die set for MC 4 solar connector
(Multi-Contact) & 2.5/4/6m2
(AWG 14/12/10) solar cable.
Universal solar cable stripper, for 2.5/4/6m2
(AWG 14/12/10) solar cable
Forged cable cutter (160mm), for copper cable: 25mm²
flexible
2 Pcs Open-end spanner and unlocking tool
(MC4 and MC4 PLUS)
Pro-soft screwdriver 5x75mm
The Parallel action Heavy duty Forged Cable Prosoft screwdrivers
crimper features Cutter with high leverage Jaw for PV junction box Pro-soft screwdriver #2 x100mm
consistent and accurate and shear blade for clean cut installation
performance without damage. Zipper carrying bag-280×197×70(mm)/11"x7.8"x2.8"
500-017 48 PC Technician's Tool Kit

Contents
Reverse action tweezer
Fine tip straight tweezer
Brush
7 in 1 crimping tool
IC extractor
PLCC extractor
Screwdriver handle
Pro-soft s/d 5.0x75mm (3.0")
Pro-soft s/d #1x75mm (3.0")
Pro-soft s/d 3/16"(inch)
Wrist strap 10FT
Utility knife (3 blades self loading)
LED Flash light
7 pcs folding type hex key set (inch)
3 prong holder
8"Adjustable wrench
Mini hammer set (including 6 parts)
5 pcs needle file set
Long nose plier 135mm (5.3")
Diagonal cutting plier 110mm (4.3")
Lineman’s plier 210mm (8.3")
Flat nose plier 135mm (5.3")
Bent nose plier 130mm (5.1")
6 pcs electronic screwdriver set
Desoldering pump
Quick heat ceramic soldering iron 110V
Solder core 63%, SN
3 pcs soldering aid tools
Heat sink
/ Double-end blade 175mm length 4mm/T6
/ Double-end blade 175mm length #1/#2
/ Double-end blade 175mm length 6mm/T8
/ Double-end blade 175mm length T10/T15
Extension blade 175mm (7")
Heavy duty zipper bag
• Case size: 435x325x90mm (17.1"x12.8"x3.5")
• Individual packing: Color box
196 • NOTE : For quality reason. we reserve the right to change the above specifications without notice.
