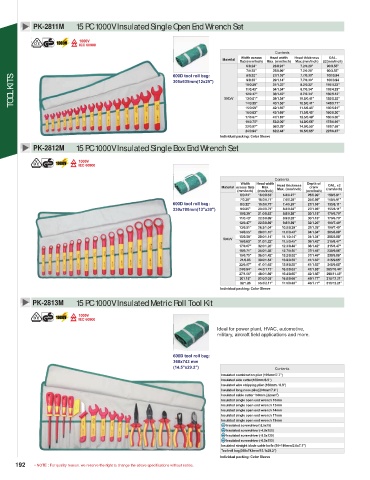

PK-2811M 15 PC 1000V Insulated Single Open End Wrench Set

Contents
Material Width across Head width Head thickness OAL.
flats(mm/Inch) Max. (mm/Inch) Max.(mm/Inch) ±2(mm/Inch)
6/0.24" 23/0.91" 7.2/0.28" 90/3.55"
90/3.55"
7/0.28" 25/0.99" 7.2/0.28" 100/3.94
600D tool roll bag:
27/1.06"
7.7/0.30"
8/0.32"
TOOL KITS 305x635mm(12x25") 50CrV 10/0.39" 31/1.22" 10.5/0.41" 110/4.33"
100/3.94
7.7/0.30"
29/1.14"
9/0.35"
8.2/0.32"
34/1.34"
11/0.43"
110/4.33"
8.7/0.34"
36/1.42"
12/0.47"
130/5.12"
8.7/0.34"
39/1.54"
13/0.51"
135/5.32"
14/0.55"
42/1.65"
11.5/0.45"
15/0.59"
150/5.91"
11.5/0.45"
16/0.63" 40/1.58" 10.5/0.41" 145/5.71"
160/6.30"
43/1.69"
17/0.67" 47/1.85" 12.5/0.49" 160/6.30"
19/0.75" 53/2.09" 14.0/0.55" 175/6.90"
22/0.87" 58/2.29" 14.0/0.55" 195/7.68"
24/0.94" 62/2.44" 16.5/0.65" 225/8.87"
Individual packing: Color Sleeve
PK-2812M 15 PC 1000V Insulated Single Box End Wrench Set
Contents
Width Head width Depth of
OAL. ±2
Material across flats Max. Head thickness crank (mm/Inch)
Max. (mm/Inch)
(mm/Inch) (mm/Inch) (mm/Inch)
6/0.24" 16.0/0.63" 6.8/0.27" 25/0.99" 150/5.91"
7/0.28" 18.0/0.71" 7.0/0.28" 25/0.99" 150/5.91"
600D tool roll bag: 8/0.32" 19.0/0.75" 7.4/0.29" 27/1.06" 155/6.11"
330x780mm(13"x30") 9/0.35" 20.0/0.79" 8.3/0.33" 27/1.06" 155/6.11"
10/0.39" 21.0/0.83" 8.8/0.35" 30/1.18" 170/6.70"
11/0.43" 22.5/0.89" 8.9/0.35" 30/1.18" 170/6.70"
12/0.47" 22.5/0.89" 9.8/0.39" 32/1.26" 190/7.49"
13/0.51" 26.5/1.04" 10.0/0.39" 32/1.26" 190/7.49"
14/0.55" 28.0/1.10" 11.0/0.43" 34/1.34" 205/8.08"
15/0.59" 29.0/1.14" 11.1/0.44" 34/1.34" 205/8.08"
50CrV
16/0.63" 31.0/1.22" 11.5/0.45" 36/1.42" 215/8.47"
17/0.67" 32.0/1.26" 12.3/0.48" 36/1.42" 215/8.47"
18/0.71" 35.0/1.38" 12.7/0.50" 37/1.46" 230/9.06"
19/0.75" 36.0/1.42" 13.2/0.52" 37/1.46" 230/9.06"
21/0.83 39.0/1.54" 13.9/0.55" 41/1.62" 245/9.65"
22/0.87" 41.0/1.62" 13.9/0.55" 41/1.62" 245/9.65"
24/0.94" 44.0/1.73" 16.0/0.63" 42/1.65" 265/10.44"
27/1.06" 48.0/1.89" 16.4/0.65" 42/1.65" 290/11.43"
301.18" 52.0/2.05" 16.8/0.66" 45/1.77" 310/12.21"
32/1.26 55.0/2.17" 17.5/0.69" 45/1.77" 310/12.21"
Individual packing: Color Sleeve
PK-2813M 15 PC 1000V Insulated Metric Roll Tool Kit
Ideal for power plant, HVAC, automotive,
military, aircraft field applications and more.
600D tool roll bag:
368x743 mm
(14.5"x29.2") Contents
Insulated combination plier (195mm/7.7")
Insulated side cutter(165mm/6.5")
Insulated wire stripping plier (160mm / 6.3")
Insulated long nose plier(200mm/7.9")
Insulated cable cutter 150mm (22mm ) 2
Insulated single open end wrench 10mm
Insulated single open end wrench 13mm
Insulated single open end wrench 14mm
Insulated single open end wrench 17mm
Insulated single open end wrench 19mm
Insulated screwdriver(-2.5x75)
Insulated screwdriver (-4.0x100)
Insulated screwdriver (-5.5x125)
Insulated screwdriver (-6.5x150)
Insulated straight blade cable knife (50×180mm/2.0x7.1")
Tool roll bag(368x743mm/15.1x29.2")
Individual packing: Color Sleeve
192 • NOTE : For quality reason. we reserve the right to change the above specifications without notice.
