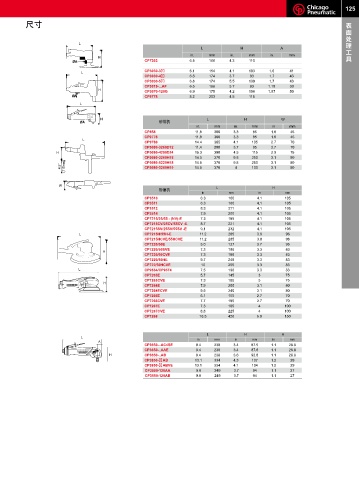

P. 125
125
尺寸 理 工 具 表 面 处
L
L H A
in. mm in. mm in. mm
H
ØA CP7202 6.5 166 4.3 110
L CP3030-3� 6.1 154 4.1 103 1.6 41
CP3030-4� 6.8 174 3.7 93 1.7 43
CP3030-5� 6.8 174 5.5 139 1.7 43
CP3019-...AF 6.5 166 3.7 93 1.18 30
H CP3070-120G 6.9 175 4.2 108 1.97 50
ØA CP9778 8.2 203 4.5 115
A
A
L
H L H W
ØA 砂带机
in. mm in. mm in mm
CP858 11.8 300 3.3 85 1.8 45
CP9778 11.8 300 3.3 85 1.8 45
L
CP9780 14.4 365 4.1 105 2.7 70
CP5080-3260D12 11.4 290 3.7 95 2.7 70
H CP5080-4200D24 15.3 390 4.5 115 2.9 75
CP5080-3260H18 14.5 370 9.8 250 3.1 80
4.5" (115mm) m) m) m) m ( ( CP5080-5220H18 14.5 370 9.8 250 3.1 80
CP5080-3260H19
14.5
80
100
3.1
4
370
W L H
砂磨机
in mm in mm
CP3510 6.3 160 4.1 105
CP3511 6.3 160 4.1 105
CP3512 8.3 211 4.1 105
CP3514 7.9 200 4.1 105
CP7215/25/55 - (NV)-E 7.3 185 4.1 105
CP7215CV/25CV/55CV -E 8.7 221 4.1 105
CP7215SV/25SV/55SV -E 9.1 232 4.1 105
L CP7215H/55H-E 11.2 285 3.8 96
CP7215HCVE/55HCVE 11.2 285 3.8 96
CP7220/50E 5.0 127 3.7 95
CP7220/50SVE 7.3 186 3.3 83
H
CP7220/50CVE 7.3 186 3.3 83
CP7220/50HE 9.7 246 3.3 83
CP722/50HCVE 10 255 3.3 83
L CP9534/CP9674 7.5 190 3.3 83
CP7263E 5.7 145 3 75
CP7263CVE 7.3 185 3 75
H
CP7264E 7.9 200 3.1 80
CP7264ECVE 9.5 240 3.1 80
CP7266E 6.1 155 2.7 70
CP7266CVE 7.7 195 2.7 70
CP7267E 7.3 185 4 100
CP7267CVE 8.8 225 4 100
CP7268 16.5 420 5.9 150
L H A
L in mm in mm in mm
A
CP3650-..AC4SE 9.4 238 3.4 87.5 1.1 26.8
CP3650-..AAE 9.4 238 3.4 87.8 1.1 26.8
H CP3650-..AB 9.4 238 3.6 92.8 1.1 26.8
CP3850-�AB 13.1 334 4.3 107 1.2 29
CP3850-�ABVE 13.1 334 4.1 104 1.2 29
CP3550-120AA 9.8 249 3.7 94 1.1 27
CP3550-120AB 9.8 249 3.7 94 1.1 27
