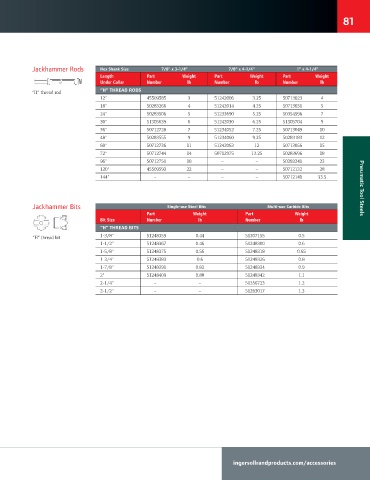

81

Jackhammer Rods Hex Shank Size 7/8" x 3-1/4" 7/8" x 4-1/4" 1" x 4-1/4"
Length Part Weight Part Weight Part Weight
Under Collar Number lb Number lb Number lb
“H" THREAD RODS
“H” thread rod
12" 45509585 3 51242006 3.25 50713023 4
18" 50283266 4 51242014 4.25 50713031 5
24" 50283506 5 51233690 5.25 50354596 7
30" 51305639 6 51242030 6.25 51305704 9
36" 50712728 7 51234052 7.25 50713049 10
48" 50283555 9 51234060 9.25 50283183 12
60" 50712736 11 51242063 12 50713056 15
72" 50712744 14 50712975 13.25 50283696 18
96" 50712751 18 – – 50283241 23
120" 45509593 22 – – 50712132 28
144" – – – – 50712140 33.5 Pneumatic Tool Steels

Jackhammer Bits Single-use Steel Bits Multi-use Carbide Bits
Part Weight Part Weight
Bit Size Number lb Number lb
“H" THREAD BITS
1-3/8" 51248359 0.44 51307155 0.5
“H” thread bit
1-1/2" 51248367 0.46 51248300 0.6
1-5/8" 51248375 0.56 51248318 0.65
1-3/4" 51248383 0.6 51248326 0.8
1-7/8" 51248391 0.82 51248334 0.9
2" 51248409 0.88 51248342 1.1
2-1/4" – – 51356723 1.2
2-1/2" – – 51293017 1.3
