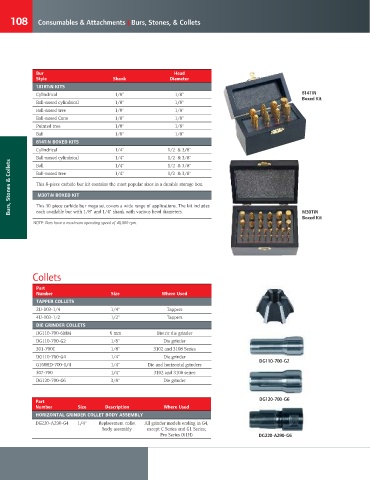

108 Consumables & Attachments | Burs, Stones, & Collets

bur Head
Style Shank Diameter
1818TIN kITS
Cylindrical 1/8" 1/8" 814TiN
Boxed Kit
Ball-nosed cylindrical 1/8" 1/8"
Ball-nosed tree 1/8" 1/8"
Ball-nosed Cone 1/8" 1/8"
Pointed tree 1/8" 1/8"
Ball 1/8" 1/8"
814TIN bOxED kITS
Cylindrical 1/4" 1/2 & 3/8"
Ball-nosed cylindrical 1/4" 1/2 & 3/8"
Burs, Stones & Collets Ball-nosed tree 1/4" 1/2 & 3/8"
1/4"
1/2 & 3/8"
Ball

This 8-piece carbide bur kit contains the most popular sizes in a durable storage box.
M30TIN bOxED kIT
This 30-piece carbide bur mega set covers a wide range of applications. The kit includes
each available bur with 1/8" and 1/4" shank with various head diameters.
M30TiN
Boxed Kit
£¤ TE: Burs have a maximum operating speed of 40,000 rpm.

Collets

Part
Number Size Where Used
TAPPER COLLETS
2U-103-1/4 1/4" Tappers
4U-103-1/2 1/2" Tappers
DIE gRINDER COLLETS
DG110-700-6MM 6 mm Metric die grinder
DG110-700-G2 1/8" Die grinder
301-700C 1/8" 3102 and 3108 Series
DG110-700-G4 1/4" Die grinder
DG110-700-G2
G160HD-700-1/4 1/4" Die and horizontal grinders
307-700 1/4" 3102 and 3108 series
DG120-700-G6 3/8" Die grinder

DG120-700-G6
Part
Number Size Description Where Used
HORIzONTAL gRINDER COLLET bODy ASSEMbLy
DG220-A290-G4 1/4" Replacement collet All grinder models ending in G4,
body assembly except C Series and G1 Series;
Pro Series (61H) DG220-A290-G6
