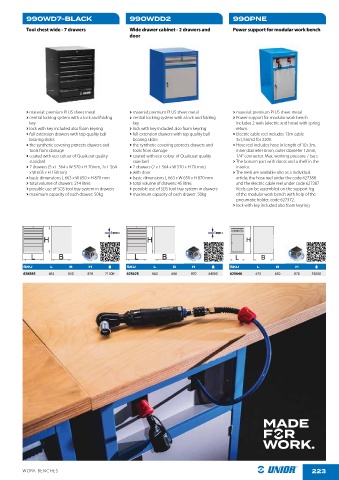

Page 225 - UniorTools-Eng
P. 225

990WD7-BLACK                         990WDD2                             990PNE
          Tool chest wide - 7 drawers          Wide drawer cabinet - 2 drawers and   Power support for modular work bench
                                               door















          › material: premium PLUS sheet metal  › material: premium PLUS sheet metal  › material: premium PLUS sheet metal
          › central locking system with a lock and folding   › central locking system with a lock and folding   › Power support for modular work bench
           key                                  key                                 includes 2 reels (electric and hose) with spring
          › lock with key included also foam keyring  › lock with key included also foam keyring  return.
          › full extension drawers with top quality ball-  › full extension drawers with top quality ball-  › Electric cable reel includes 13m cable
           bearing slides                       bearing slides                      3x1,5mm2 for 220V.
          › the synthetic covering protects drawers and   › the synthetic covering protects drawers and   › Hose reel includes hose in length of 10+3m,
           tools from damage                    tools from damage                   inner diameter 8mm, outer diameter 12mm,
          › coated with eco colour of Qualicoat quality   › coated with eco colour of Qualicoat quality   1/4" connector. Max. working pressure 7 bars.
           standard                             standard                           › The bottom part with doors and a shelf in the
          › 7 drawers (5 x L 564 x W 570 x H 70mm, 2x L 564   › 2 drawers (2 x L 564 x W 570 x H 70 mm)  interior.
           x W 605 x H 150mm)                  › with door                         › The reels are available also as a individual
          › basic dimensions L 663 x W 650 x H 870 mm  › basic dimensions L 663 x W 650 x H 870 mm  article; the hose reel under the code 627388
          › total volume of drawers: 214 litres  › total volume of drawers: 45 litres  and the electric cable reel under code 627387.
          › possible use of SOS tool tray system in drawers  › possible use of SOS tool tray system in drawers  Reels can be assembled on the support leg
          › maximum capacity of each drawer: 50kg  › maximum capacity of each drawer: 50kg  of the modular work bench with help of the
                                                                                    pneumatic holder, code 627372.
                                                                                   › lock with key included also foam keyring




                                        1mm                                 1mm






         SKU       L     B      H             SKU      L      B     H             SKU      L      B      H
         628585   663    650    870   71500   625625  663    650    870   44000   625646   475    650   870   33000
