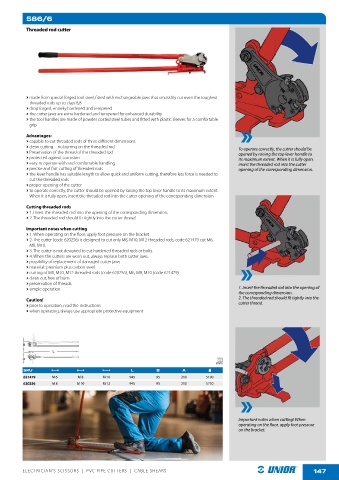

586/6
Threaded rod cutter

› made from special forged tool steel, "tted with exchangeable jaws that smoothly cut even the toughest

threaded rods up to class 8,8
› drop forged, entirely hardened and tempered
› the cutter jaws are extra hardened and tempered for enhanced durability
› the tool handles are made of powder coated steel tubes and "tted with plastic sleeves for a comfortable

grip
Advantages:
› capable to cut threaded rods of three di!erent dimensions

› clean cutting – no burring on the threaded rod To operate correctly, the cutter should be
› Preservation of the thread of the threaded rod opened by raising the top lever handle to
› protected against corrosion its maximum extent. When it is fully open,
› easy to operate with and comfortable handling insert the threaded rod into the cutter
› precise and fast cutting of threaded rods opening of the corresponding dimension.
› the lever handle has suitable length to allow quick and uniform cutting, therefore less force is needed to
cut the threaded rods
› proper opening of the cutter
› to operate correctly, the cutter should be opened by raising the top lever handle to its maximum extent.
When it is fully open, insert the threaded rod into the cutter opening of the corresponding dimension

Cutting threaded rods
› 1. Insert the threaded rod into the opening of the corresponding dimension.
› 2. The threaded rod should "t tightly into the cutter thread.

Important notes when cutting
› 1. When operating on the &oor, apply foot pressure on the bracket.

› 2. The cutter (code 620256) is designed to cut only M8, M10, M12 threaded rods, code 621479 cut M6,
M8, M10.
› 3. The cutter is not designed to cut hardened threaded rods or bolts.
› 4. When the cutters are worn out, always replace both cutter jaws.
› possibility of replacement of damaged cutter jaws
› material: premium plus carbon steel
› cutting of M8, M10, M12 threaded rods (code 620256), M6, M8, M10 (code 621479)
› clean cut, free of burrs
› preservation of threads
› simple operation 1. Insert the threaded rod into the opening of
the corresponding dimension.

Caution! 2. The threaded rod should !t tightly into the
cutter thread.
› prior to operation, read the instructions
› when operating, always use appropriate protective equipment

mm
SKU L B A
621479 M 6 M 8 M 10 945 95 210 5100
620256 M 8 M 10 M 12 945 95 210 5750

Important notes when cutting! When

operating on the #oor, apply foot pressure
on the bracket.
