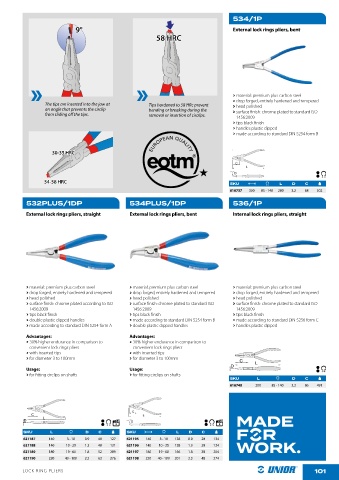

Page 103 - UniorTools-Eng

534/1P
9° External lock rings pliers, bent
58 HRC

› material: premium plus carbon steel
› drop forged, entirely hardened and tempered
The tips are inserted into the jaw at Tips hardened to 58 HRc prevent › head polished
an angle that prevents the circlip bending or breaking during the › surface "nish: chrome plated to standard ISO

from sliding o" the tips. removal or insertion of circlips. 1456:2009
› tips black "nish

› handles plastic dipped
› made according to standard DIN 5254 form B
30-35 HRC

54-58 HRC SKU L D C
616737 300 85 - 140 280 3.2 68 502

532PLUS/1DP 534PLUS/1DP 536/1P
External lock rings pliers, straight External lock rings pliers, bent Internal lock rings pliers, straight

› material: premium plus carbon steel › material: premium plus carbon steel › material: premium plus carbon steel
› drop forged, entirely hardened and tempered › drop forged, entirely hardened and tempered › drop forged, entirely hardened and tempered
› head polished › head polished › head polished
› surface "nish: chrome plated according to ISO › surface "nish: chrome plated to standard ISO › surface "nish: chrome plated to standard ISO

1456:2009 1456:2009 1456:2009

› tips black "nish › tips black "nish › tips black "nish
› double plastic dipped handles › made according to standard DIN 5254 form B › made according to standard DIN 5256 form C
› made according to standard DIN 5254 form A › double plastic dipped handles › handles plastic dipped
Advantages: Advantages:
› 30% higher endurance in comparison to › 30% higher endurance in comparison to
convenient lock rings pliers convenient lock rings pliers
› with inserted tips › with inserted tips
› for diameter 3 to 100mm › for diameter 3 to 100mm
Usage: Usage:
› for "tting circlips on shafts › for "tting circlips on shafts

SKU L D C
616740 300 85 - 140 3.2 86 491

SKU L D C SKU L D C
621187 140 3 - 10 0.9 40 127 621195 140 3 - 10 128 0.9 28 134
621188 140 10 - 25 1.3 40 131 621196 140 10 - 25 128 1.3 28 124
621189 180 19 - 60 1.8 52 209 621197 180 19 - 60 166 1.8 38 204
621190 220 40 - 100 2.2 63 276 621198 220 40 - 100 201 2.3 48 274

LOCK RING PLIERS 101
