We Make Connections EZ! Kits

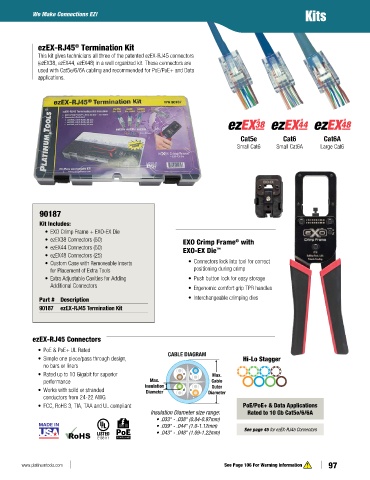

ezEX-RJ45 Termination Kit
®
This kit gives technicians all three of the patented ezEX-RJ45 connectors
(ezEX38, ezEX44, ezEX48) in a well organized kit. These connectors are
used with Cat5e/6/6A cabling and recommended for PoE/PoE+ and Data
applications.

Cat5e Cat6 Cat6A
Small Cat6 Small Cat6A Large Cat6

90187
Kit Includes:
• EXO Crimp Frame + EXO-EX Die
• ezEX38 Connectors (50) EXO Crimp Frame with
®
• ezEX44 Connectors (50) EXO-EX Die ™
• ezEX48 Connectors (25)
• Custom Case with Removeable Inserts • Connectors lock into tool for correct
for Placement of Extra Tools positioning during crimp
• Extra Adjustable Cavities for Adding • Push button lock for easy storage
Additional Connectors • Ergonomic comfort grip TPR handles

Part # Description • Interchangeable crimping dies
90187 ezEX-RJ45 Termination Kit

ezEX-RJ45 Connectors

• PoE & PoE+ UL Rated
• Simple one piece/pass through design, Hi-Lo Stagger
no bars or liners
• Rated up to 10 Gigabit for superior
performance
• Works with solid or stranded
conductors from 24-22 AWG
• FCC, RoHS 3, TIA, TAA and UL compiiant PoE/PoE+ & Data Applications
Insulation Diameter size range: Rated to 10 Gb Cat5e/6/6A
• .033" - .038" (0.84-0.97mm)
• .039" - .044" (1.0-1.12mm)
• .043" - .048" (1.09-1.22mm) See page 45 for ezEX-RJ45 Connectors
