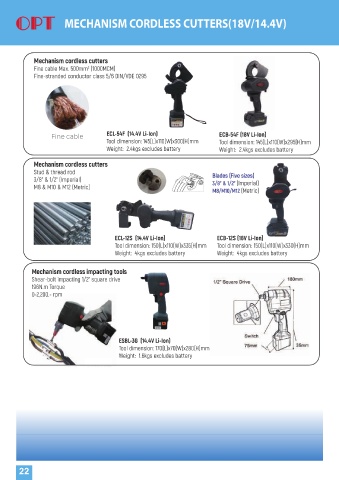

Page 28 - OPT英文液压和锂电2024
P. 28
MECHANISM CORDLESS CUTTERS(18V/14.4V)
Mechanism cordless cutters
Fine cable Max. 500mm (1000MCM)
2
Fine-stranded conductor class 5/6 DIN/VDE 0295
Fine cable ECL-54F (14.4V Li-Ion) ECB-54F (18V Li-Ion)
Tool dimension: 145(L)x110(W)x300(H)mm Tool dimension: 145(L)x110(W)x295(H)mm
Weight: 2.4kgs excludes battery Weight: 2.4kgs excludes battery
Mechanism cordless cutters
Stud & thread rod Blades (Five sizes)
3/8” & 1/2” (Imperial) 3/8” & 1/2” (Imperial)
M8 & M10 & M12 (Metric)
M8/M10/M12 (Metric)
ECL-12S (14.4V Li-Ion) ECB-12S (18V Li-Ion)
Tool dimension: 150(L)x110(W)x335(H)mm Tool dimension: 150(L)x110(W)x330(H)mm
Weight: 4kgs excludes battery Weight: 4kgs excludes battery
Mechanism cordless impacting tools
Shear-bolt impacting 1/2” square drive
196N.m Torque
0-2,200.- rpm
ESBL-3G (14.4V Li-Ion)
Tool dimension: 170(L)x70(W)x280(H)mm
Weight: 1.6kgs excludes battery
22
