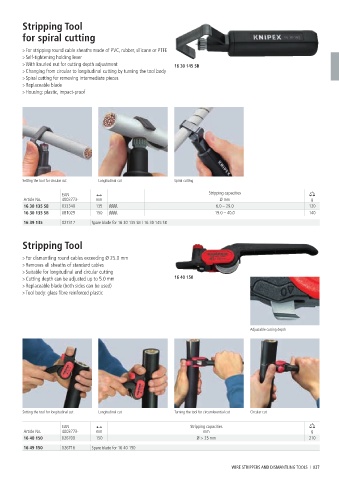

Stripping Tool

for spiral cutting

> For stripping round cable sheaths made of PVC, rubber, silicone or PTFE
> Self-tightening holding lever
> With knurled nut for cutting depth adjustment 16 30 145 SB
> Changing from circular to longitudinal cutting by turning the tool body
> Spiral cutting for removing intermediate pieces
> Replaceable blade
> Housing: plastic, impact-proof

Setting the tool for circular cut Longitudinal cut Spiral cutting

EAN Stripping capacities
Article No. 4003773- mm Ø mm g
16 30 135 SB 033349 135 6.0 – 29.0 120
16 30 135 SB 081029 150 19.0 – 40.0 140
16 39 135 027317 Spare blade for 16 30 135 SB / 16 30 145 SB

Stripping Tool
> For dismantling round cables exceeding Ø 25.0 mm
> Removes all sheaths of standard cables
> Suitable for longitudinal and circular cutting
> Cutting depth can be adjusted up to 5.0 mm 16 40 150
> Replaceable blade (both sides can be used)
> Tool body: glass fibre reinforced plastic

Adjustable cutting depth

Setting the tool for longitudinal cut Longitudinal cut Turning the tool for circumferential cut Circular cut

EAN Stripping capacities
Article No. 4003773- mm mm g
16 40 150 026709 150 Ø > 25 mm 210

16 49 150 026716 Spare blade for 16 40 150

WIRE STRIPPERS AND DISMANTLING TOOLS I 037
