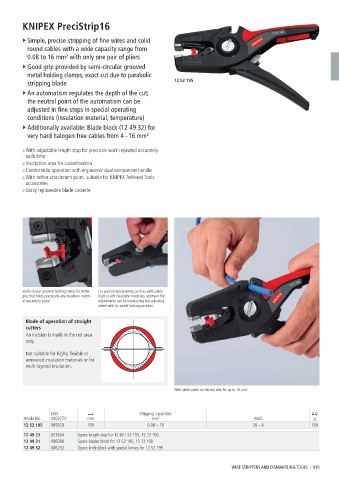

Page 19 - 凯尼派克英文通用样本2024knipex

KNIPEX PreciStrip16

► Simple, precise stripping of fine wires and solid
round cables with a wide capacity range from
0.08 to 16 mm² with only one pair of pliers
► Good grip provided by semi-circular grooved
metal holding clamps; exact cut due to parabolic
stripping blade 12 52 195

► An automatism regulates the depth of the cut;
the neutral point of the automatism can be
adjusted in fine steps in special operating
conditions (insulation material, temperature)
► Additionally available: Blade block (12 49 32) for
very hard halogen-free cables from 4 –16 mm²

> With adjustable length stop for precision work repeated accurately
each time
> Inscription area for customisation
> Comfortable operation with ergonomic dual-component handle
> With tether attachment point, suitable for KNIPEX Tethered Tools
accessories
> Easily replaceable blade cassette

Semi-circular grooved holding clamp for better For special requirements, such as particularly
grip that holds practically any insulation materi- hard or soft insulation materials, optimum fine
al securely in place adjustments can be made using the adjusting
wheel with its tactile locking positions

Mode of operation of straight
cutters
An incision is made in the red area
only.

Not suitable for highly flexible or
armoured insulation materials or for
multi-layered insulation.

With cable cutter on the top side for up to 16 mm²

EAN Stripping capacities
Article No. 4003773- mm mm² AWG g
12 52 195 085829 190 0.08 – 16 28 – 6 180
12 49 23 057604 Spare length stop for 12 42 / 52 195, 12 72 190
12 49 31 086000 Spare blades block for 12 52 195, 12 72 190
12 49 32 086253 Spare knife block with special knives for 12 52 195

WIRE STRIPPERS AND DISMANTLING TOOLS I 019
