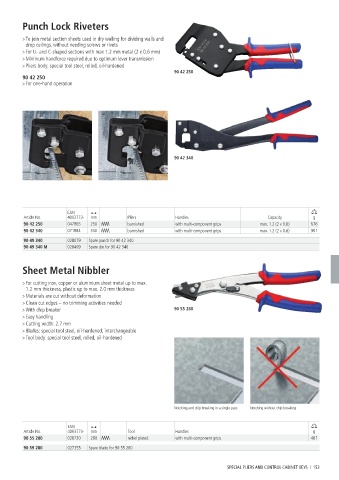

Page 153 - 凯尼派克英文通用样本2024knipex

Punch Lock Riveters
> To join metal section sheets used in dry walling for dividing walls and
drop ceilings, without needing screws or rivets
> For U- and C-shaped sections with max 1.2 mm metal (2 x 0.6 mm)
> Minimum handforce required due to optimum lever transmission
> Pliers body: special tool steel, rolled, oil-hardened
90 42 250
90 42 250
> For one-hand operation

90 42 340

EAN
Article No. 4003773- mm Pliers Handles Capacity g
90 42 250 047865 250 burnished with multi-component grips max. 1.2 (2 x 0.6) 676
90 42 340 071884 340 burnished with multi-component grips max. 1.2 (2 x 0.6) 901
90 49 340 028079 Spare punch for 90 42 340
90 49 340 M 028499 Spare die for 90 42 340

Sheet Metal Nibbler
> For cutting iron, copper or aluminium sheet metal up to max.
1.2 mm thickness, plastic up to max. 2.0 mm thickness
> Materials are cut without deformation
> Clean cut edges – no trimming activities needed
> With chip breaker 90 55 280
> Easy handling
> Cutting width: 2.7 mm
> Blades: special tool steel, oil-hardened, interchangeable
> Tool body: special tool steel, rolled, oil-hardened

Notching and chip breaking in a single pass Notching without chip breaking

EAN
Article No. 4003773- mm Tool Handles g
90 55 280 026730 280 nickel plated with multi-component grips 461

90 59 280 027355 Spare blade for 90 55 280

SPECIAL PLIERS AND CONTROL CABINET KEYS I 153
