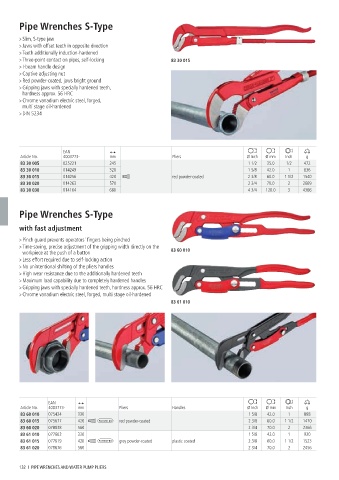

Pipe Wrenches S-Type
> Slim, S-type jaw
> Jaws with offset teeth in opposite direction
> Teeth additionally induction-hardened
> Three-point contact on pipes, self-locking 83 30 015
> I-beam handle design
> Captive adjusting nut
> Red powder-coated, jaws bright ground
> Gripping jaws with specially hardened teeth,
hardness approx. 56 HRC
> Chrome vanadium electric steel, forged,
multi stage oil-hardened
> DIN 5234

EAN
Article No. 4003773- mm Pliers Ø Inch Ø mm Inch g
83 30 005 025221 245 1 1/2 35.0 1/2 472
83 30 010 014249 320 1 5/8 42.0 1 836
83 30 015 014256 420 red powder-coated 2 3/8 60.0 1 1/2 1540
83 30 020 014263 570 2 3/4 70.0 2 2669
83 30 030 014164 680 4 3/4 120.0 3 4366

Pipe Wrenches S-Type

with fast adjustment
> Pinch guard prevents operators' fingers being pinched
> Time-saving, precise adjustment of the gripping width directly on the
workpiece at the push of a button 83 60 010
> Less effort required due to self-locking action
> No unintentional shifting of the pliers handles
> High wear resistance due to the additionally hardened teeth
> Maximum load capability due to completely hardened handles
> Gripping jaws with specially hardened teeth, hardness approx. 56 HRC
> Chrome vanadium electric steel, forged, multi stage oil-hardened
83 61 010

EAN
Article No. 4003773- mm Pliers Handles Ø Inch Ø mm Inch g
83 60 010 075424 330 1 5/8 42.0 1 898
83 60 015 075677 420 red powder-coated 2 3/8 60.0 1 1/2 1470
83 60 020 078838 560 2 3/4 70.0 2 2366
83 61 010 077602 330 1 5/8 42.0 1 930
83 61 015 077619 420 grey powder-coated plastic coated 2 3/8 60.0 1 1/2 1523
83 61 020 078876 560 2 3/4 70.0 2 2456

132 I PIPE WRENCHES AND WATER PUMP PLIERS
