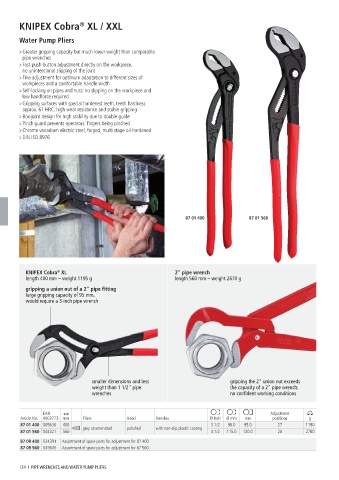

KNIPEX Cobra XL / XXL

Water Pump Pliers

> Greater gripping capacity but much lower weight than comparable
pipe wrenches
> Fast push-button adjustment directly on the workpiece,
no unintentional slipping of the joint
> Fine adjustment for optimum adaptation to different sizes of
workpieces and a comfortable handle width
> Self-locking on pipes and nuts: no slipping on the workpiece and
low handforce required
> Gripping surfaces with special hardened teeth, teeth hardness
approx. 61 HRC: high wear resistance and stable gripping
> Box-joint design for high stability due to double guide
> Pinch guard prevents operators' fingers being pinched
> Chrome vanadium electric steel, forged, multi stage oil-hardened
> DIN ISO 8976

87 01 400 87 01 560

KNIPEX Cobra XL 2" pipe wrench
®
length 400 mm – weight 1195 g length 560 mm – weight 2670 g
gripping a union nut of a 2" pipe fitting
large gripping capacity of 95 mm,
would require a 3-inch pipe wrench

smaller dimensions and less gripping the 2" union nut exceeds
weight than 1 1/2" pipe the capacity of a 2" pipe wrench;
wrenches no confident working conditions

EAN Adjustment
Article No. 4003773- mm Pliers Head Handles Ø Inch Ø mm mm positions g
87 01 400 005636 400 grey atramentized polished with non-slip plastic coating 3 1/2 90.0 95.0 27 1190
87 01 560 044321 560 4 1/2 115.0 120.0 20 2780
87 09 400 034391 Assortment of spare parts for adjustment for 87 400
87 09 560 049845 Assortment of spare parts for adjustment for 87 560

124 I PIPE WRENCHES AND WATER PUMP PLIERS
