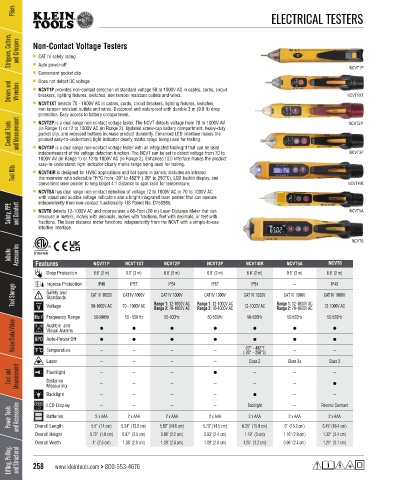

Page 260 - 凯能全英文KleinTools Catalog 167

Pliers
ELECTRICAL TESTERS

Strippers, Cutters, and Crimpers Non-Contact Voltage Testers

•
CAT IV safety rating
•
• Auto power-off NCVT1P
Convenient pocket clip
•
Does not detect DC voltage
Drivers and Wrenches • NCVT1P provides non-contact detection of standard voltage 50 to 1000V AC in cables, cords, circuit NCVT1XT
breakers, lighting fixtures, switches, non tamper-resistant outlets and wires.
• NCVT1XT detects 70 - 1000V AC in cables, cords, circuit breakers, lighting fixtures, switches,
non tamper-resistant outlets and wires. Dustproof and waterproof with durable 3 m (9.8 ft) drop
protection. Easy access to battery compartment. NCVT2P
•
NCVT2P is a dual range non-contact voltage tester. The NCVT detects voltage from 70 to 1000V AV
Conduit Tools and Measurement (in Range 1) or 12 to 1000V AC (in Range 2). Updated screw-cap battery compartment, heavy-duty
pocket clip, and recessed buttons increase product durability. Enhanced LED interface makes the
product easy-to-understand; light indicator clearly marks range being used for testing.
•
NCVT3P is a dual range non-contact voltage tester with an integrated flashlight that can be used
indepentendent of the voltage detection function. The NCVT can be set to detect voltage from 70 to NCVT3P
1000V AV (in Range 1) or 12 to 1000V AC (in Range 2). Enhanced LED interface makes the product
easy-to-understand; light indicator clearly marks range being used for testing.
Tool Kits • NCVT4IR is designed for HVAC applications and hot spots in panels, includes an infrared
thermometer with selectable °F/°C from -20° to 482°F (-30° to 250°C), LCD backlit display, and
convenient laser pointer to help target 4:1 distance to spot ratio for temperature. NCVT4IR
• NCVT5A has dual range non-contact detection of voltage 12 to 1000V AC or 70 to 1000V AC
with visual and audible voltage indicators and a bright integrated laser pointer that can operate
independently from non-contact functionality. US Patent No. D750985.
Safety, PPE and Comfort • NCVT6 detects 12-1000V AC and incorporates a 66-Foot (20 m) Laser Distance Meter that can NCVT5A
measure in meters, inches with decimals, inches with fractions, feet with decimals, or feet with
fractions. The laser distance meter functions independently from the NCVT with a simple-to-use
intuitive interface.

NCVT6
Jobsite Accessories Features NCVT1P NCVT1XT NCVT2P NCVT3P NCVT4IR NCVT5A NCVT6

Drop Protection 6.6' (2 m) 9.8' (3 m) 6.6' (2 m) 6.6' (2 m) 6.6' (2 m) 9.8' (3 m) 6.6' (2 m)
–
IP40
IP67
IP54
IP40
IP54
IP67
Tool Storage Ingress Protection CAT IV 1000V CAT IV 1000V CAT IV 1000V CAT IV 1000V CAT IV 1000V CAT IV 1000V CAT IV 1000V
Safety and
Standards
Range 1: 12-1000V AC
70 - 1000V AC
Voltage
50-1000V AC
Range 2: 70-1000V AC Range 1: 12-1000V AC 12-1000V AC Range 1: 12-1000V AC 12-1000V AC
Range 2: 70-1000V AC
Range 2: 70-1000V AC
Frequency Range 50-500Hz 50 - 500 Hz 50-500Hz 50-500Hz 50-500Hz 50-500Hz 50-500Hz
Voice/Data/Video Visual Alarms
Audible and
Auto-Power Off
-22° – 482°F
–
–
–
–
Temperature
(-30° – 250°C) – –
Laser – – – – Class 2 Class 3a Class 2
Test and Measurement Flashlight – – – – – – – – – –
Distance
–
–
Measuring
–
Backlight – – – – – – Backlight – – Reverse Contrast
–
–
LCD Display
Power Tools and Accessories Batteries 2 x AAA 2 x AAA 2 x AAA 2 x AAA 2 x AAA 2 x AAA 2 x AAA
5.5" (14 cm)
6" (15.2 cm)
Overall Length
1.32" (3.4 cm)
0.86" (2.2 cm)
Overall Height 0.72" (1.8 cm) 5.34" (13.6 cm) 5.82" (14.8 cm) 5.70" (14.5 cm) 6.25" (15.9 cm) 1.16" (2.9 cm) 6.45" (16.4 cm)
0.93" (2.4 cm)
1.19" (3 cm)
0.97" (2.5 cm)
Overall Width 1" (2.5 cm) 1.08" (2.8 cm) 1.09" (2.8 cm) 1.09" (2.8 cm) 1.25" (3.2 cm) 0.96" (2.4 cm) 1.21" (3.1 cm)
