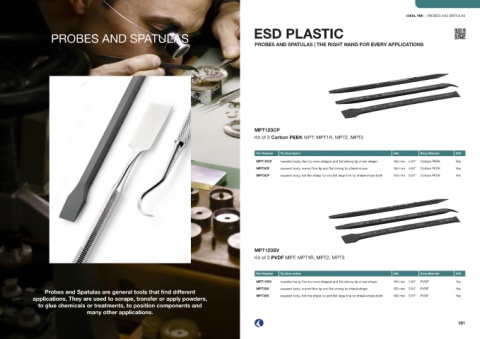

IDEAL-TEK | PROBES AND SPATULAS IDEAL-TEK | PROBES AND SPATULAS

PROBES AND SPATULAS ESD PLASTIC

PROBES AND SPATULAS | THE RIGHT HAND FOR EVERY APPLICATIONS

MPT123CP

Kit of 3 Carbon PEEK MPT: MPT1R, MPT2, MPT3

Part Number Tip Description OAL Body Material ESD

MPT1RCP rounded body, fine tip cone-shaped and flat strong tip chisel-shape 150 mm 5.91” Carbon PEEK Yes
MPT2CP squared body, curved fine tip and flat strong tip chisel-shape 150 mm 5.91” Carbon PEEK Yes
MPT3CP squared body, flat fine sharp tip and flat large fine tip chisel-shape both 140 mm 5.51” Carbon PEEK Yes

MPT123SV
Kit of 3 PVDF MPT: MPT1R, MPT2, MPT3

Part Number Tip Description OAL Body Material ESD

MPT1RSV rounded body, fine tip cone-shaped and flat strong tip chisel-shape 150 mm 5.91” PVDF Yes

Probes and Spatulas are general tools that find different MPT2SV squared body, curved fine tip and flat strong tip chisel-shape 150 mm 5.91” PVDF Yes
applications. They are used to scrape, transfer or apply powders, MPT3SV squared body, flat fine sharp tip and flat large fine tip chisel-shape both 140 mm 5.51” PVDF Yes
to glue chemicals or treatments, to position components and
many other applications.

190 191
