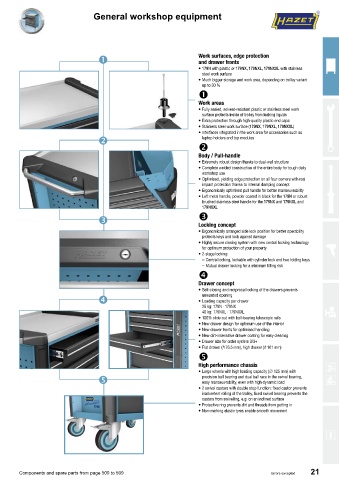

General workshop equipment
Work surfaces, edge protection
and drawer fronts
179N with plastic or 179NX, 179NXL, 179NXXL with stainless
steel work surface
Much bigger storage and work area, depending on trolley variant
up to 30 %
Work areas
Fully sealed, solvent-resistant plastic or stainless steel work
surface protects inside of trolley from leaking liquids
Extra protection through high-quality plastic end caps
Stainless steel work surface (179NX, 179NXL, 179NXXL)
Interfaces integrated in the work area for accessories such as
laptop holders and top modules
Body / Pull-handle
Extremely robust design thanks to dual-wall structure
Complete welded construction of the entire body for tough daily
workshop use
Optimised, yielding edge protection on all four corners with real
impact protection thanks to internal damping concept
Ergonomically optimised pull handle for better manoeuvrability
Left metal handle, powder coated in black for the 179N or robust
brushed stainless steel handle for the 179NX and 179NXL and
179NXXL
Locking concept
Ergonomically arranged side lock position for better operability
protects keys and lock against damage
Highly secure closing system with new central locking technology
for optimum protection of your property
2-stage locking:
– Central locking, lockable with cylinder lock and two folding keys
– Mutual drawer locking for a minimum tilting risk
Drawer concept
Self-closing and reciprocal locking of the drawers prevents
unwanted opening
Loading capacity per drawer
25 kg: 179N ∙ 179NX
40 kg: 179NXL ∙ 179NXXL
100% slide-out with ball-bearing telescopic rails
New drawer design for optimum use of the interior
New drawer fronts for optimised handling
New dirt-insensitive drawer coating for easy cleaning
Drawer size for order system 3/3+
Flat drawer (h 76.5 mm), high drawer (h 161 mm)
High performance chassis
Large wheels with high loading capacity (x 125 mm) with
precision ball bearing and dual ball race in the swivel bearing,
easy manoeuvrability, even with high dynamic load
2 swivel castors with double stop function: fixed castor prevents
inadvertent rolling of the trolley, fixed swivel bearing prevents the
castors from swivelling, e.g. on an inclined surface
Protective ring prevents dirt and threads from getting in
Non-marking elastic tyres enable smooth movement
Components and spare parts from page 500 to 509 Errors excepted 21
