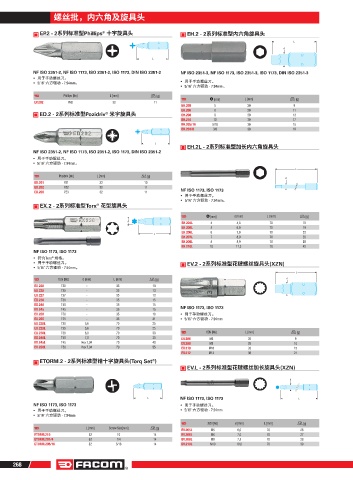

Page 276 - FACOM产品目录2025

d
L

Phillips [No] L [mm] [g]
[mm] L [mm] [g]
EP.202 PH2 32 11
EH.205 5 30 9
EH.206 6 30 11
EH.208 8 30 13
EH.210 10 30 17
EH.205/16 5/16 30 15
EH.203/8 3/8 30 19
L

Pozidriv [No] L [mm] [g] d
ED.201 PZ1 32 10
ED.202 PZ2 32 11
ED.203 PZ3 32 11

[mm] d [mm] L [mm] [g]
A EH.204L 4 4,8 70 15
EH.205L 5 6,0 70 19
EH.206L 6 7,0 70 23
EH.207L 7 8,9 70 28
EH.208L 8 8,9 70 29
EH.210L 10 11,3 70 42

Torx [No] d [mm] L [mm] [g] d
EX.220 T20 - 35 13
EX.225 T25 - 35 13
EX.227 T27 - 35 13
EX.230 T30 - 35 15
EX.240 T40 - 35 15
EX.245 T45 - 35 15
EX.250 T50 - 35 18
EX.255 T55 - 35 31
EX.220L T20 5,6 70 25
EX.225L T25 5,6 70 25
EX.230L T30 6,0 70 30 XZN [No] L [mm] [g]
EX.240L T40 7,0 70 30 EV.206 M6 28 9
EX.245L T45 Hex.7,94 70 40 EV.208 M8 28 10
EX.250L T50 Hex.7,94 70 55 EV.210 M10 32 15
EV.212 M12 36 21

d

L L

XZN [No] d [mm] L [mm] [g]
L [mm] Screw Size[mm] [g] EV.205L M5 6,0 70 26
ETORM.210 32 10 14 EV.206L M6 7,0 70 27
ETORM.201/4 32 1/4 14 EV.208L M8 7,5 70 28
ETORM.205/16 32 5/16 14 EV.210L M10 10,0 70 39
