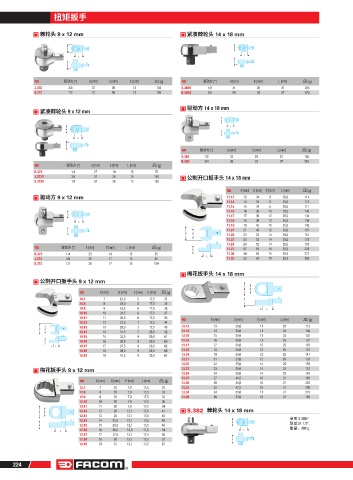

Page 232 - FACOM产品目录2025

d d
L L
E
E

驱动方 ["] d [mm] E [mm] L [mm] [g] 驱动方 ["] d [mm] E [mm] L [mm] [g]
J.372 3/8 37 26 15 155 S.382V 1/2 41 26 27 285
S.372 1/2 37 26 15 165 K.382A 3/4 69 35 27 870

驱动方 14 x 18 mm
紧凑棘轮头 9 x 12 mm
d
L
d
E
L
E
驱动方 ["] d [mm] E [mm] L [mm] [g]
S.383 1/2 32 22 27 160
K.383 3/4 38 22 27 340
驱动方 ["] d [mm] E [mm] L [mm] [g]
R.372 1/4 27 19 15 70
J.372V 3/8 37 26 15 140 公制开口扳手头 14 x 18 mm
S.372V 1/2 37 26 15 150
A [mm] B [mm] E [mm] L [mm] [g]
11.13 13 34 8 25,0 114
11.14 14 34 8 25,0 113
11.15 15 34 8 25,0 111
11.16 16 39 10 25,0 140
d
11.17 17 39 12 25,0 134
11.18 18 39 12 25,0 136
L
11.19 19 45 12 25,0 140
E 11.21 21 45 12 25,0 157
B A 11.22 22 52 14 25,0 161
11.23 23 52 14 25,0 172
11.24 24 52 14 25,0 165
驱动方 ["] d [mm] E [mm] L [mm] [g]
E 11.27 27 59 16 32,5 222
R.373 1/4 23 14 15 55 L 11.30 30 64 18 32,5 277
J.373 3/8 26 17 15 85 11.32 32 64 18 32,5 269
S.373 1/2 26 17 15 100
B A
A [mm] B [mm] E [mm] L [mm] [g]
10.7 7 21,0 5 17,5 33
10.8 8 22,0 5 17,5 32 E
10.9 9 23,5 6 17,5 38 L
10.10 10 24,5 6 17,5 37
10.11 11 26,0 6 17,5 36 A [mm] d [mm] E [mm] L [mm] [g]
10.12 12 27,5 7 17,5 44
10.13 13 29,0 7 17,5 45 13.13 13 30,0 11 25 113
B A 13.14 14 30,0 11 25 109
10.14 14 31,5 7 20,0 42
10.15 15 33,0 9 20,0 61 13.15 15 30,0 11 25 107
E 10.16 16 35,5 9 20,0 60 13.16 16 30,0 11 25 127
L 10.17 17 37,5 9 20,0 62 13.17 17 30,0 12 25 123
10.18 18 39,0 9 20,0 69 13.18 18 30,0 12 25 118
10.19 19 41,5 9 20,0 67 13.19 19 31,0 12 25 141
13.21 21 33,0 12 25 133
13.22 22 35,0 14 25 153
13.23 23 38,0 14 25 157
13.24 24 38,0 14 25 143
13.27 27 41,5 16 31 183
A [mm] B [mm] E [mm] L [mm] [g] 13.30 30 45,0 18 31 223
12.7 7 20 7,9 17,5 33 13.32 32 47,5 18 31 209
12.8 8 20 7,9 17,5 33 13.34 34 51,0 11 31 212
12.9 9 20 7,9 17,5 32 13.36 36 53,0 19 31 193
12.10 10 20 7,9 17,5 36
12.11 11 20 7,9 17,5 34
B A 12.12 12 20 12,1 17,5 41
12.13 13 20 12,1 17,5 40
12.14 14 23,5 12,1 17,5 49 d
E 12.15 15 24,5 12,1 17,5 46
L 12.16 16 26,5 12,9 17,5 54 L
12.17 17 27,5 13,1 17,5 50
12.18 18 30 13,1 17,5 57 E
12.19 19 31 13,1 17,5 67
