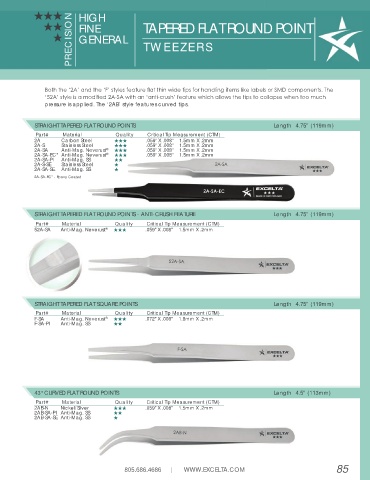

Page 85 - Excelta-2019-Catalog

HHH HIGH
PRECISION TWEEZERS
HH FINE TAPERED FLAT ROUND POINT

H GENERAL

Both the ‘2A’ and the ‘F’ styles feature fl at thin wide tips for handling items like labels or SMD components. The
‘52A’ style is a modifi ed 2A-SA with an ‘anti-crush’ feature which allows the tips to collapse when too much
pressure is applied. The ‘2AB’ style features curved tips.

STRAIGHT TAPERED FLAT ROUND POINTS Length 4.75” (119mm)
Part# Material Quality Critical Tip Measurement (CTM)
2A Carbon Steel HHH .059" X .008" 1.5mm X .2mm
2A-S Stainless Steel HHH .059" X .008" 1.5mm X .2mm
2A-SA Anti-Mag. Neverust ® HHH .059" X .008" 1.5mm X .2mm
2A-SA-EC* Anti-Mag. Neverust ® HHH .059" X .008" 1.5mm X .2mm
2A-SA-PI Anti-Mag. SS HH
2A-S-SE Stainless Steel H
2A-SA-SE Anti-Mag. SS H
2A-SA-EC* - Epoxy Coated

STRAIGHT TAPERED FLAT ROUND POINTS - ANTI-CRUSH FEATURE Length 4.75” (119mm)
Part# Material Quality Critical Tip Measurement (CTM)
52A-SA Anti-Mag. Neverust ® HHH .059" X .008" 1.5mm X .2mm

STRAIGHT TAPERED FLAT SQUARE POINTS Length 4.75” (119mm)
Part# Material Quality Critical Tip Measurement (CTM)
F-SA Anti-Mag. Neverust ® HHH .072" X .008" 1.8mm X .2mm
F-SA-PI Anti-Mag. SS HH

43° CURVED FLAT ROUND POINTS Length 4.5” (113mm)
Part# Material Quality Critical Tip Measurement (CTM)
2AB-N Nickel/Silver HHH .059" X .008" 1.5mm X .2mm
2AB-SA-PI Anti-Mag. SS HH
2AB-SA-SE Anti-Mag. SS H

805.686.4686 | WWW.EXCELTA.COM 85
