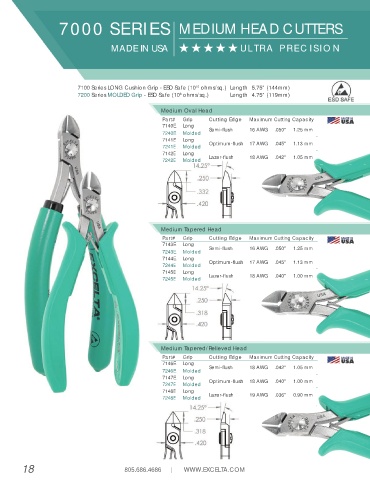

Page 18 - Excelta-2019-Catalog

7000 SERIES MEDIUM HEAD CUTTERS

MADE IN USA HHHHH ULTRA PRECISION

7100 Series LONG Cushion Grip - ESD Safe (10 ohms/sq.) Length 5.75” (144mm)
10
7200 Series MOLDED Grip - ESD Safe (10 ohms/sq.) Length 4.75” (119mm)
8
Medium Oval Head
Part# Grip Cutting Edge Maximum Cutting Capacity
7140E Long
7240E Molded Semi-flush 16 AWG .050" 1.25 mm
7141E
7141E Long
Long
Optimum-flush
7241E
Molded
7241E Molded Optimum-flush 17 AWG .045" 1.13 mm
Long
7142E Long
7142E
Lazer-flush
Molded
7242E
7242E Molded Lazer-flush 18 AWG .042" 1.05 mm

Medium Tapered Head
Part# Grip Cutting Edge Maximum Cutting Capacity
7143E Long
7243E Molded Semi-flush 16 AWG .050" 1.25 mm
7144E Long Optimum-flush 17 AWG .045" 1.13 mm
Optimum-flush
Molded
7244E
7244E Molded
7145E Long
7145E
Long
Lazer-flush
Molded
7245E Molded Lazer-flush 18 AWG .040" 1.00 mm
7245E

Medium Tapered/Relieved Head
Part# Grip Cutting Edge Maximum Cutting Capacity
7146E Long
7246E Molded Semi-flush 18 AWG .042" 1.05 mm
7147E Long
Optimum-flush
Molded
7247E
7247E Molded Optimum-flush 18 AWG .040" 1.00 mm
7148E Long
7148E
Long
Lazer-flush
7248E
Molded
7248E Molded Lazer-flush 19 AWG .036" 0.90 mm

18 805.686.4686 | WWW.EXCELTA.COM
