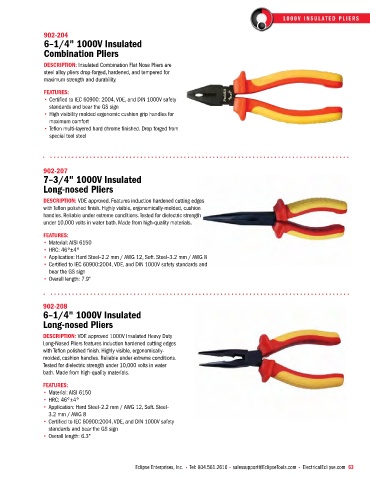

Page 65 - EclipseTools_2019-2020_Electrical

1000V INSULATED PLIERS

902-204
6–1/4" 1000V Insulated
Combination Pliers

DESCRIPTION: Insulated Combination Flat Nose Pliers are
steel alloy pliers drop‑forged, hardened, and tempered for
maximum strength and durability.
FEATURES:
• Certified to IEC 60900: 2004, VDE, and DIN 1000V safety
standards and bear the GS sign
• High visibility molded ergonomic cushion grip handles for
maximum comfort
• Teflon multi‑layered hard chrome finished. Drop forged from
special tool steel

902-207
7–3/4" 1000V Insulated
Long-nosed Pliers

DESCRIPTION: VDE approved. Features induction hardened cutting edges
with Teflon polished finish. Highly visible, ergonomically‑molded, cushion
handles. Reliable under extreme conditions. Tested for dielectric strength
under 10,000 volts in water bath. Made from high‑quality materials.

FEATURES:
• Material: AISI 6150
• HRC: 46°±4°
• Application: Hard Steel–2.2 mm / AWG 12, Soft. Steel–3.2 mm / AWG 8
• Certified to IEC 60900:2004, VDE, and DIN 1000V safety standards and
bear the GS sign
• Overall length: 7.9"

902-208
6–1/4" 1000V Insulated
Long-nosed Pliers

DESCRIPTION: VDE approved 1000V Insulated Heavy Duty
Long‑Nosed Pliers features induction hardened cutting edges
with Teflon polished finish. Highly visible, ergonomically‑
molded, cushion handles. Reliable under extreme conditions.
Tested for dielectric strength under 10,000 volts in water
bath. Made from high‑quality materials.

FEATURES:
• Material: AISI 6150
• HRC: 46°±4°
• Application: Hard Steel–2.2 mm / AWG 12, Soft. Steel–
3.2 mm / AWG 8
• Certified to IEC 60900:2004, VDE, and DIN 1000V safety
standards and bear the GS sign
• Overall length: 6.3"
