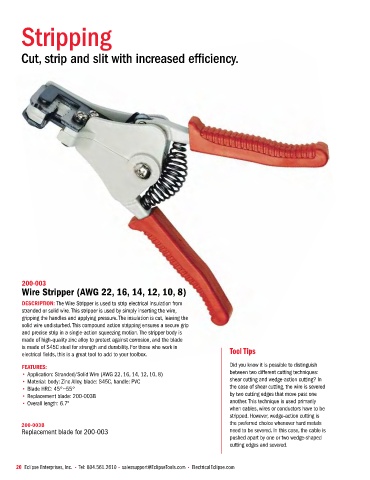

Stripping

Cut, strip and slit with increased efficiency.

200-003
Wire Stripper (AWG 22, 16, 14, 12, 10, 8)

DESCRIPTION: The Wire Stripper is used to strip electrical insulation from
stranded or solid wire. This stripper is used by simply inserting the wire,
gripping the handles and applying pressure. The insulation is cut, leaving the
solid wire undisturbed. This compound action stripping ensures a secure grip
and precise strip in a single‑action squeezing motion. The stripper body is
made of high‑quality zinc alloy to protect against corrosion, and the blade
is made of S45C steel for strength and durability. For those who work in Tool Tips
electrical fields, this is a great tool to add to your toolbox.

FEATURES: Did you know it is possible to distinguish
• Application: Stranded/Solid Wire (AWG 22, 16, 14, 12, 10, 8) between two different cutting techniques:
• Material: body: Zinc Alloy, blade: S45C, handle: PVC shear cutting and wedge‑action cutting? In
• Blade HRC: 45°~55° the case of shear cutting, the wire is severed
• Replacement blade: 200‑003B by two cutting edges that move past one
• Overall length: 6.7" another. This technique is used primarily
when cables, wires or conductors have to be
stripped. However, wedge‑action cutting is
200-003B the preferred choice whenever hard metals
Replacement blade for 200‑003 need to be severed. In this case, the cable is
pushed apart by one or two wedge‑shaped
cutting edges and severed.
