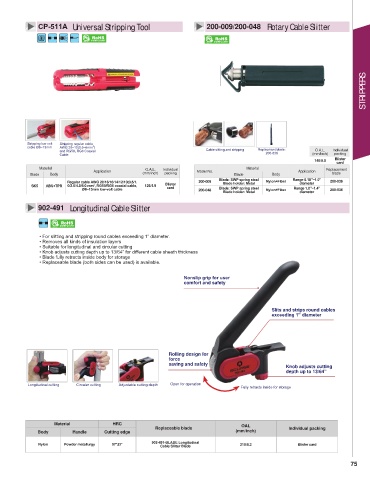

CP-511A Universal Stripping Tool 200-009/200-048 Rotary Cable Slitter

STRIPPERS

Stripping low volt Stripping regular cable
cable Ø8~13mm AWG 20~10(0.5~6mm ) 2
and RG59, RG6 Coaxial Cable slitting and stripping Replacment blade: O.A.L. Individual
Cable 200-036 (mm/inch) packing
140/5.5 Blister
card
Material O.A.L. Individual Material Replacement
Blade Body Application (mm/inch) packing Model No. Blade Body Application blade
Regular cable AWG 20/18/16/14/12/10(0.5/1. 200-009 Blade: SWP spring steel Nylon+Fiber Range 0.18"~1.0" 200-036
diameter
Blade holder: Metal
2
SK5 ABS+TPR 0/2.5/4.0/6.0 mm , RG59/RG6 coaxial cable, 125/4.9 Blister
Ø8~13mm low-volt cable card 200-048 Blade: SWP spring steel Nylon+Fiber Range 1.0"~1.4" 200-036
Blade holder: Metal
diameter
902-491 Longitudinal Cable Slitter

• For slitting and stripping round cables exceeding 1” diameter.
• Removes all kinds of insulation layers
• Suitable for longitudinal and circular cutting
• Knob adjusts cutting depth up to 13/64” for different cable sheath thickness
• Blade fully retracts inside body for storage
• Replaceable blade (both sides can be used) is available.

Nonslip grip for user
comfort and safety

Slits and strips round cables
exceeding 1” diameter

Rolling design for
force
saving and safety
Knob adjusts cutting
depth up to 13/64”

Longitudinal cutting Circular cutting Adjustable cutting depth Open for operation
Fully retracts inside for storage

Material HRC OAL
Replaceable blade Individual packing
Body Handle Cutting edge (mm/inch)
Nylon Powder metallurgy 57°±3° 902-491-BLADE Longitudinal 210/8.2 Blister card
Cable Slitter Blade

75
