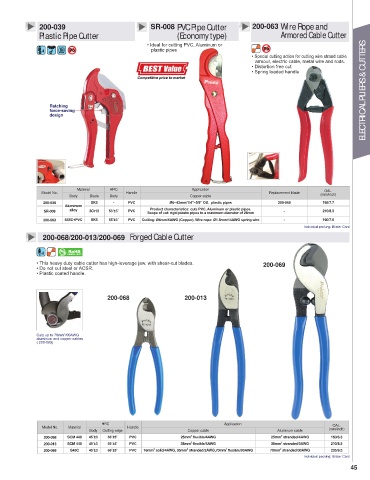

Page 62 - EclipseTools_CAT2017_Full

200-039 SR-008 PVC Pipe Cutter 200-063 Wire Rope and
Plastic Pipe Cutter (Economy type) Armored Cable Cutter
ELECTRICAL PLIERS & CUTTERS
• Ideal for cutting PVC, Aluminum or
plastic pipes
• Special cutting action for cutting wire strand cable
armour, electric cable, metal wire and rods.
• Distortion free cut
• Spring loaded handle

Ratching
force-saving
design

Material HRC Application
Model No. Handle Replacement blade OAL.
Body Blade Body Copper cable (mm/inch)
200-039 SK5 - PVC Ø6~42mm/1/4"~5/8" OD. plastic pipes 200-045 195/7.7
Aluminum
HRC OAL. alloy 3Cr13 53˚±3˚ PVC Product characteristics: cuts PVC, Aluminum or plastic pipes. - 210/8.3
Material Handle Application SR-008 Scope of cut: rigid plastic pipes to a maximum diameter of 26mm
Body (mm/inch)
2
16mm solid/4AWG, 35mm 2 200-063 S55C+PVC SK5 55˚±3˚ PVC Cutting: Ø4mm/6AWG (Copper), Wire rope: Ø1.5mm/14AWG spring wire - 190/7.5
S45C PVC 45˚±3˚ stranded/2AWG, 70mm 2 170/6.7 Individual packing: Blister Card
flexible/00AWG
200-068/200-013/200-069 Forged Cable Cutter

• This heavy duty cable cutter has high-leverage jaw. with shear-cut blades. 200-069
• Do not cut steel or ACSR.
• Plastic coated handle.

200-068 200-013

Cuts up to 70mm 2 /00AWG
aluminum and copper cables
( 200-069)

HRC Application
Model No. Material Handle OAL.
Body Cutting edge Copper cable Aluminum cable (mm/inch)
2
2
200-068 SCM 440 45˚±3 60˚±5˚ PVC 25mm flexible/4AWG 25mm stranded/4AWG 160/6.3
200-013 SCM 440 45˚±3 60˚±5˚ PVC 38mm flexible/3AWG 38mm stranded/3AWG 210/8.3
2
2
2
200-069 S45C 45˚±3 60˚±5˚ PVC 16mm solid/4AWG, 35mm stranded/2AWG,70mm flexible/00AWG 70mm stranded/00AWG 235/9.3
2
2
2
Individual packing: Blister Card
