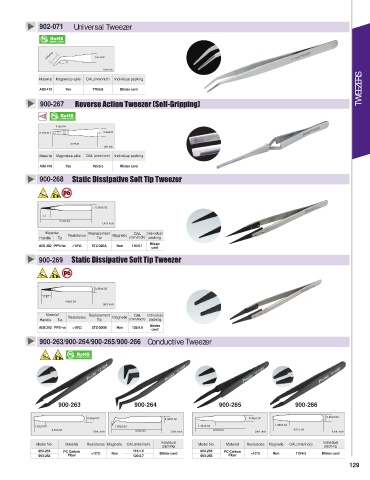

Page 146 - EclipseTools_CAT2017_Full

902-071 Universal Tweezer

0.65±0.02 0.43±0.02

Unit: inch
TWEEZERS
Material Magnetize-able OAL(mm/inch) Individual packing
AISI 410 Yes 175/6.9 Blister card
900-267 Reverse Action Tweezer (Self-Gripping)

0.39±0.04
0.14±0.02 0.39±0.02
3.0±0.04
Unit: inch
Material Magnetize-able OAL (mm/inch) Individual packing
AISI 410 Yes 165/6.5 Blister card
900-268 Static Dissipative Soft Tip Tweezer

0.39±0.02
1.1
5.1±0.04
Unit: inch
Material Replacement OAL Individual
Handle Tip Resistance Tip Magnetic (mm/inch) packing
Blister
AISI 302 PPS-hb <10 6 Ω 5TZ-300A Non 130/5.1
card
900-269 Static Dissipative Soft Tip Tweezer

0.39±0.02
0.87
4.9±0.04
Unit: inch
Material Replacement OAL Individual
Handle Tip Resistance Tip Magnetic (mm/inch) packing
Blister
AISI 302 PPS-hb <10 6 Ω 5TZ-300B Non 125/4.9
card
900-263/900-264/900-265/900-266 Conductive Tweezer

900-263 900-264 900-265 900-266

0.39±0.02 0.39±0.02 0.39±0.02 0.39±0.02
1.38±0.04 1.38±0.04 1.38±0.04 1.38±0.04
4.5±0.04 4.5±0.04 4.5±0.04
Unit: inch 4.5±0.04 Unit: inch Unit: inch Unit: inch
Model No. Material Resistance Magnetic OAL(mm/inch) Individual Model No. Material Resistance Magnetic OAL(mm/inch) Individual
packing
packing
900-263 PC Carbon <10 4 Ω Non 115/4.5 Blister card 900-265 PC Carbon <10 4 Ω Non 115/4.5 Blister card
900-264 Fiber 120/4.7 900-266 Fiber
