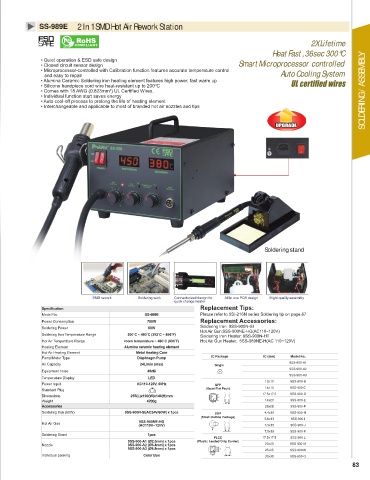

SS-989E 2 In 1 SMD Hot Air Rework Station

2X Lifetime
Heat Fast , 36sec 300°C
• Quiet operation & ESD safe design Smart Microprocessor controlled
• Closed circuit sensor design
• Microprocessor-controlled with Calibration function features accurate temperature control Auto Cooling System
and easy to repair
• Alumina Ceramic Soldering iron heating element features high power, fast warm up UL certified wires
• Silicone handpiece cord wire heat-resistant up to 200°C
• Comes with 18 AWG (0.823mm²) UL Certified Wires. SOLDERING / ASSEMBLY
• Individual function start saves energy
• Auto cool-off process to prolong the life of heating element
• Interchangeable and applicable to most of branded hot air nozzles and tips

Soldering stand

SMD rework Soldering work Connectorized design for All in one PCB design Hight quality assembly
quick change heater
Specification Replacement Tips:
Model No. SS-989E Please refer to 5SI-216N series Soldering tip on page.87
Power Consumption 700W Replacement Accessories:
Soldering Power 60W Soldering Iron: 9SS-900N-SI
Hot Air Gun:9SS-900NE-HG(AC110~120V)
Soldering Iron Temperature Range 200˚C ~ 480˚C (392˚C ~ 896˚F) Soldering Iron Heater: 9SS-900N-HT
Hot Air Temperature Range room temperature ~ 480˚C (896˚F) Hot Air Gun Heater: 5SS-989NE-H(AC 110~120V)
Heating Element Alumina ceramic heating element
Hot Air Heating Element Metal Heating Core
Pump/Motor Type Diaphragm Pump IC Package IC (mm) Model No.
Air Capacity 24L/min (max) Single 9SS-900-A1
9SS-900-A2
Equipment noise 45dB
9SS-900-A3
Temperature Display LED 10x10 9SS-900-B
Power Input AC110-120V, 60Hz QFP
Standard Plug (Quad Flat Pack) 14x14 9SS-900-C
Dimensions 255(L)x190(W)x140(H)mm A C 17.5x17.5 9SS-900-D
Weight 4200g D B 14x20 9SS-900-E
Accessories 28x28 9SS-900-F
Soldering Iron (60W) 9SS-900N-SI(AC24V/60W) x 1pcs SOP 4.4x10 9SS-900-H
(Small Qutline Package) 5.6x13 9SS-900-I
O
9SS-900NE-HG
Hot Air Gun (AC110V~120V) A 7.5x15 9SS-900-J
B 7.5x18 9SS-900-K
Soldering Stand 1pcs
PLCC 17.5x17.5 9SS-900-L
9SS-900-A1 (Ø2.3mm) x 1pcs (Plastic Leaded Chip Carrier)
Nozzle 9SS-900-A2 (Ø6.4mm) x 1pcs 20x20 9SS-900-M
9SS-900-A3 (Ø8.8mm) x 1pcs A C 25x25 9SS-900-N
B
Individual packing Color Box D 30x30 9SS-900-O
