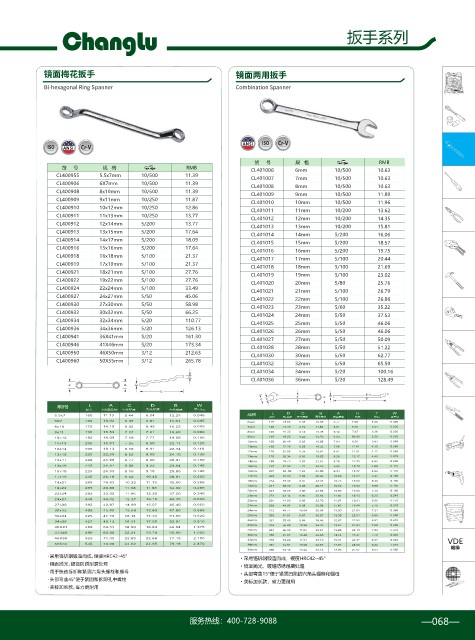

Page 69 - 长鹿工具样本202503

扳手痉列

镜面梅花扳手 镜面两用扳手

Bi-hexagonal Ring Spanner Combination Spanner

ANSI ISO
ISO ANSI
货 号 规 格 RMB
货 号 规 格 RMB CL401006 6mm 10/500 10.63
CL400955 5.5x7mm 10/500 11.39 CL401007 7mm 10/500 10.63
CL400906 6X7mm 10/500 11.39 CL401008 8mm 10/500 10.63
CL400908 8x10mm 10/500 11.39 CL401009 9mm 10/500 11.89
CL400909 9x11mm 10/250 11.87
CL401010 10mm 10/500 11.96
CL400910 10x12mm 10/250 12.86 CL401011 11mm 10/200 13.62
CL400911 11x13mm 10/250 13.77 CL401012 12mm 10/200 14.35
CL400912 12x14mm 5/200 13.77 CL401013 13mm 10/200 15.81
CL400913 13x15mm 5/200 17.64 CL401014 14mm 5/200 16.06
CL400914 14x17mm 5/200 18.09 CL401015 15mm 5/200 18.57
CL400916 13x16mm 5/200 17.64 CL401016 16mm 5/200 19.75
CL400918 16x18mm 5/100 21.37 CL401017 17mm 5/100 20.44
CL400919 17x19mm 5/100 21.37
CL401018 18mm 5/100 21.69
CL400921 18x21mm 5/100 27.76 CL401019 19mm 5/100 23.02
CL400922 19x22mm 5/100 27.76 CL401020 20mm 5/80 25.76
CL400924 22x24mm 5/100 33.49 CL401021 21mm 5/100 26.79
CL400927 24x27mm 5/50 45.06 CL401022 22mm 5/100 26.86
CL400930 27x30mm 5/50 58.98
CL401023 23mm 5/60 35.22
CL400932 30x32mm 5/50 66.25 CL401024 24mm 5/50 37.53 5m 25mm 3 4 5
CL400934 32x34mm 5/20 110.77 CL401025 25mm 5/50 46.06
CL400936 34x36mm 5/20 126.13 CL401026 26mm 5/50 46.06
CL400941 36X41mm 5/20 161.30 CL401027 27mm 5/50 50.09
CL400946 41X46mm 5/20 173.34
CL401028 28mm 5/50 51.22
CL400950 46X50mm 3/12 212.63 CL401030 30mm 5/50 62.77
CL400960 50X55mm 3/12 265.78
CL401032 32mm 5/50 65.50
CL401034 34mm 5/20 100.16
D
CL401036 36mm 5/20 128.49
A B C
L T A
H B C
S
L
D
规格 L A C D B W
总⻓ ⼩头宽度/柄 ⼩头厚度 大头厚度 ⼤头宽度 重量kg
规格 L D C B A H T W
5.5x7 160 11.13 5.44 6.04 12.23 0.045 总⻓ 开口宽度 开⼝厚度 圆头宽度 圆头厚度 柄宽 柄厚 重量kg
6X7 162 10.92 5.35 5.81 11.61 0.045 6mm 125 13.55 5.35 10.85 5.77 7.06 3.55 0.025
8x10 175 14.10 6.35 6.49 16.22 0.060 7mm 126 13.38 4.79 11.83 5.51 6.56 3.21 0.020
9x11 190 15.53 7.17 7.81 18.60 0.090 8mm 140 16.33 5.12 13.38 6.12 7.87 3.36 0.030
9mm 149 18.23 5.22 14.70 6.43 86.90 3.59 0.035
10x12 192 16.09 7.19 7.77 19.09 0.100
10mm 158 20.48 5.85 15.98 7.04 9.56 3.81 0.045
11x13 205 18.81 7.25 8.50 22.11 0.125
11mm 165 22.25 6.58 18.32 7.58 11.41 4.35 0.065
12x14 205 19.13 8.16 8.41 22.34 0.110
12mm 170 24.66 6.34 19.01 8.01 11.34 4.17 0.065
13x15 225 22.50 8.52 9.00 24.10 0.135
13mm 175 26.34 6.53 19.52 8.26 12.17 4.40 0.075
14x17 228 21.95 8.77 9.30 25.41 0.150 14mm 188 28.73 7.07 21.91 8.78 12.73 4.53 0.090
13x16 225 21.81 9.00 9.22 23.64 0.145 15mm 197 31.50 7.22 23.16 9.09 13.73 4.88 0.110
16x18 225 24.53 9.10 9.18 25.95 0.145 16mm 207 32..92 7.23 24.90 9.34 14.07 4.94 0.120
17x19 245 26.18 9.52 10.40 28.81 0.200 17mm 224 35.00 7.92 26.62 10.60 14.81 5.42 0.150
18mm 234 37.30 8.07 27.37 10.25 15.00 5.36 0.160
18x21 265 28.83 10.22 11.13 32.80 0.255
19mm 247 38.72 8.28 28.77 10.72 16.50 5.88 0.195
19x22 265 29.80 11.58 11.68 34.32 0.285
20mm 247 38.63 7.80 27.86 10.80 16.84 5.34 0.180
22x24 292 33.92 11.96 12.35 37.20 0.340
21mm 273 43.14 8.90 30.64 11.60 18.13 6.25 0.245
24x27 348 36.02 12.27 13.15 40.35 0.500 22mm 291 44.90 9.05 32.70 11.07 19.01 6.00 0.270
27x30 392 40.97 14.90 15.07 45.40 0.650 23mm 292 44.87 9.38 32.58 11.10 19.44 5.78 0.275
30x32 400 45.40 13.69 13.89 47.80 0.665 24mm 312 49.77 10.04 35.05 13.00 21.54 7.21 0.385
25mm 323 51.94 9.87 36.57 13.30 22.21 6.95 0.400
32x34 425 47.72 18.14 17.36 51.86 0.820
26mm
34x36 427 49.13 16.31 17.58 52.81 0.815 321 53.45 9.84 38.46 12.87 21.83 6.91 0.410
27mm 334 56.09 10.95 39.33 13.61 21.94 7.59 0.460
36X41 450 58.53 18.50 18.84 66.54 1.375
28mm 334 56.00 11.04 39.61 13.85 22.15 7.84 0.470
41X46 490 60.80 22.31 23.74 65.80 1.900
30mm 350 61.67 10.88 44.65 14.14 23.47 7.78 0.545
46X50 525 71.00 22.65 22.66 77.15 2.105
32mm 370 65.29 11.91 47.10 15.31 24.27 8.27 0.640 VDE
50X55 545 73.08 24.62 24.95 79.18 2.470 34mm 451 72.61 13.08 52.87 17.67 28.05 9.22 1.010
36mm 450 72.15 13.42 53.14 17.96 27.87 9.61 0.980 绝缘
·采用铬钒钢锻造而成，硬度HRC42~45° ·采甠铬钒钢锻造瘒成，畦度HRC42~45°
·镜面抛光，镀铬防锈耐磨处理 ·镜面抛光，镀铬防锈瘓磨处理
·用于快速拆卸和紧固六角头螺栓和螺母 ·头部弯曲15°便于痌固凹陷甹六角头螺栓和螺母
·头部弯曲45°便于紧固和拆卸孔中螺栓 ·瘈标加长款，畎力更瘓甠
·美标加长款，省力更耐用
